Renogy 5 Strings Solar Combiner Box

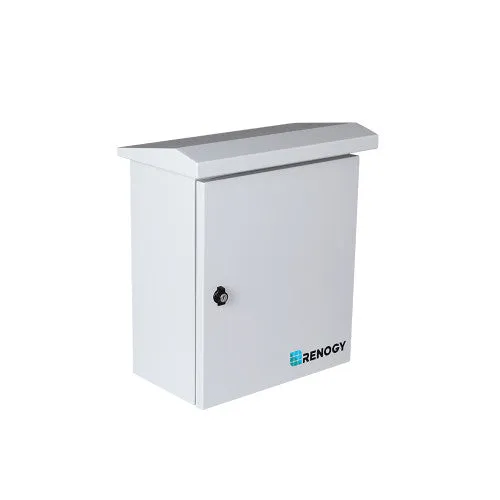

Renogy combiner box is an ideal solar energy system accessory that combines inputs from 5 of your solar panels into a single output, can accommodate up to five 1P miniature circuit breakers and one 2P surge protection device for overall safety of your solar system.

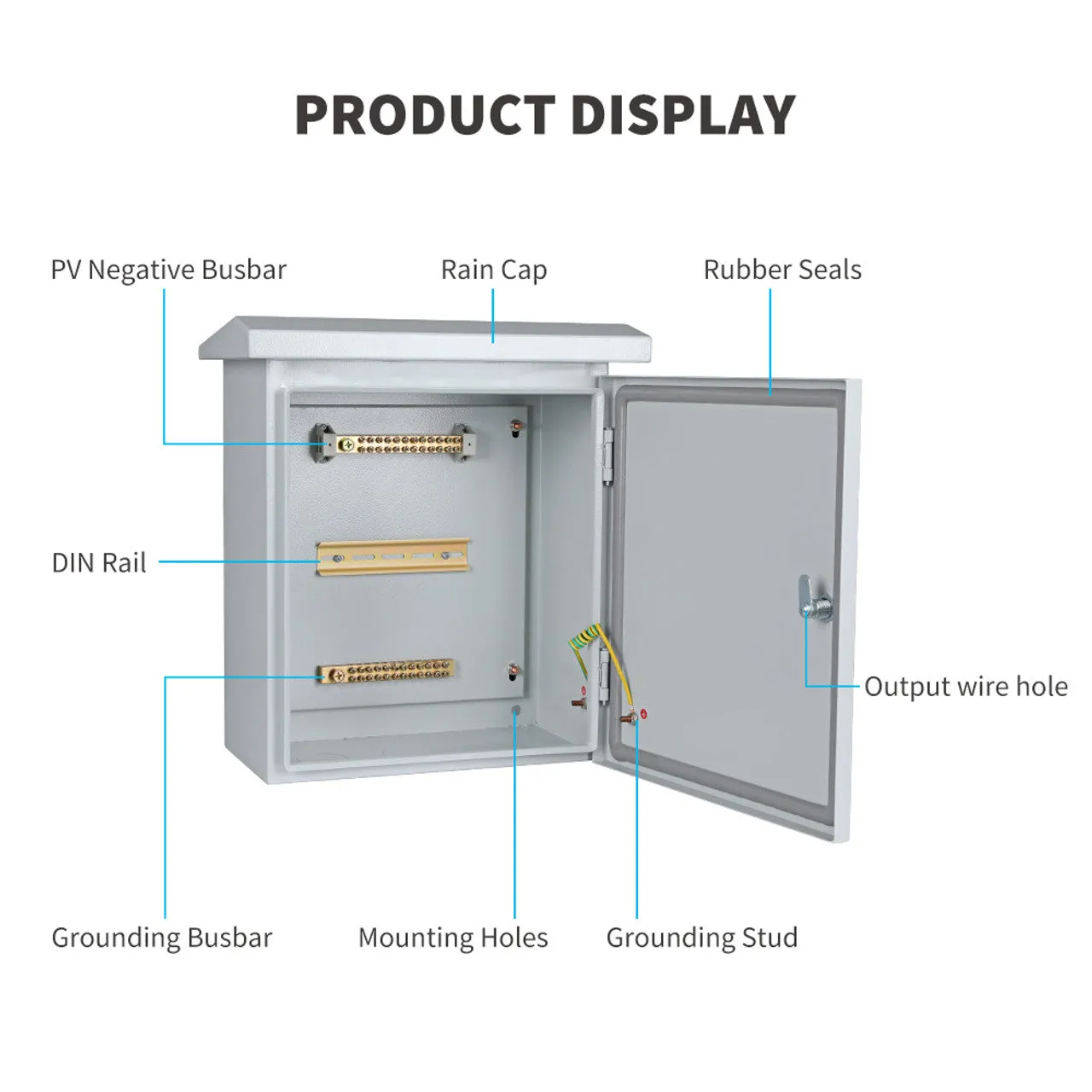

The sturdy grey steel enclosure with rain cap and rubber seals comes with a built-in DIN rail for easy installation of protection devices. Designed to survive the outdoor elements, the combiner box features knockouts for waterproof strain reliefs or conduits.

Highlights:

• 5 input to 1 output
• Overload, short circuit and lighting protection
• IP55 waterproof rated for outdoor installation
• Easy to install, easier to use

Specifications:

Maximum PV Input/Output Voltage: 250VDC

Recommended Busbar Terminal Torque: 26 inch·lbs (2.9 N·m) (Compression Terminal), 106 inch·lbs (12 N·m) (Lug Terminal)

Maximum Number of Input Circuits:5

Busbar Conductor Size: 14 AWG~6 AWG (Compression Terminal), 12 AWG~4 AWG (Lug Terminal)

Maximum Overcurrent Protection Device Rated Current: 63A

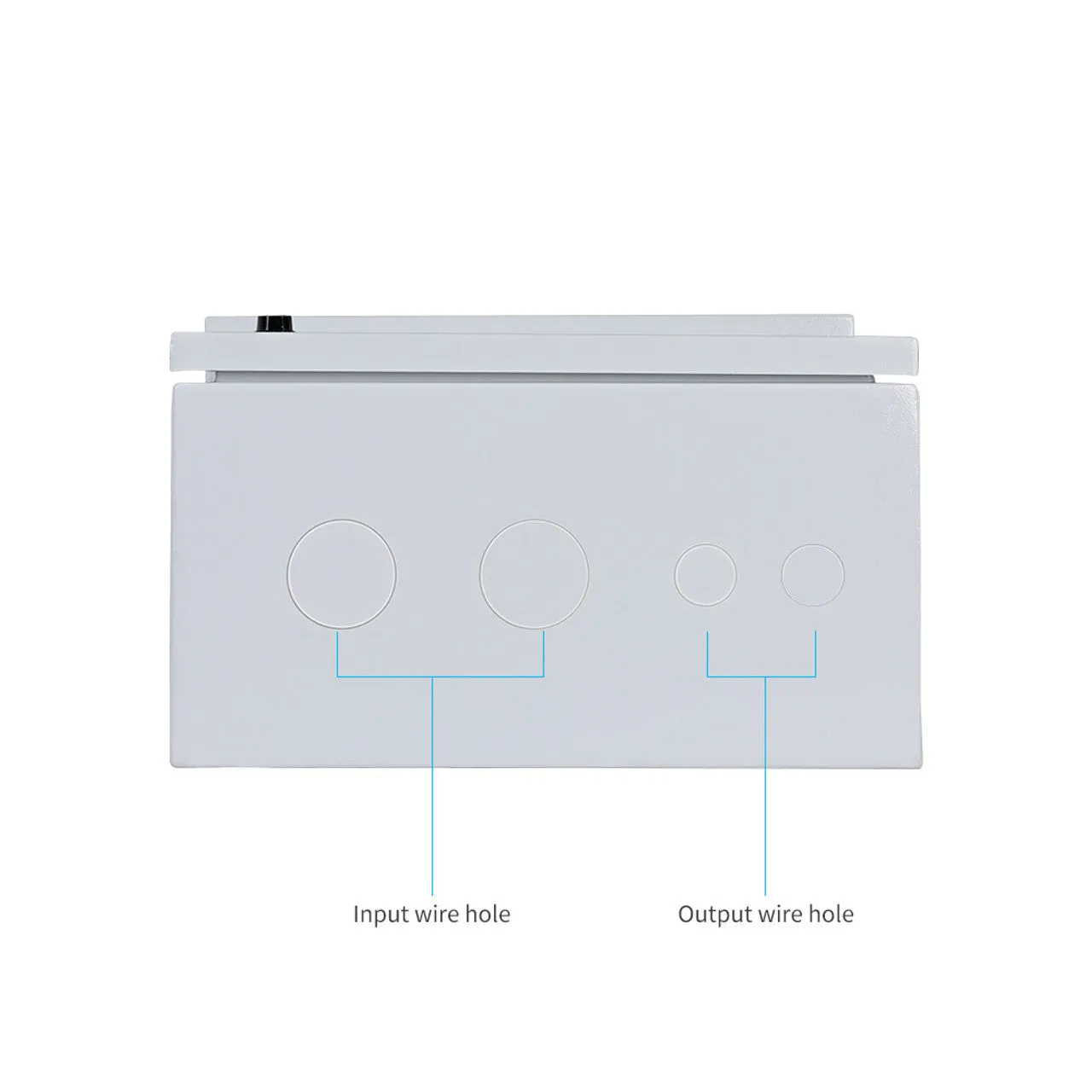

Knockout Diameter: 1.99 inch (2), 1.12 inch (2)

Rated Short Circuit Current: 6KA

DIN Rail Width: 1.38 inch (35 mm)

Maximum Output Current: 100A

Enclosure Material: Cold-Formed Steel

Number of Busbars: 2 (PV Negative Busbar, Grounding Busbar)

Enclosure Protection Rating: IP55

Busbar Rated Current: 200A

Enclosure Security: Keyed Cam Lock

Busbar Material: Copper

Mounting Method: Vertical Wall Mount

Busbar Terminal: Compression Terminals (24), Lug Terminal (1)

Installation Environment: Outdoor/Indoor

Busbar Screw: M5 (Compression Terminal), M8 (Lug Terminal)

5 Pin Busbar: Rated Current 100A

Dimensions: 17.1 x 15.0 x 8.8 in

Weight: 20.9 lb

Material and workmanship warranty: 1 Year

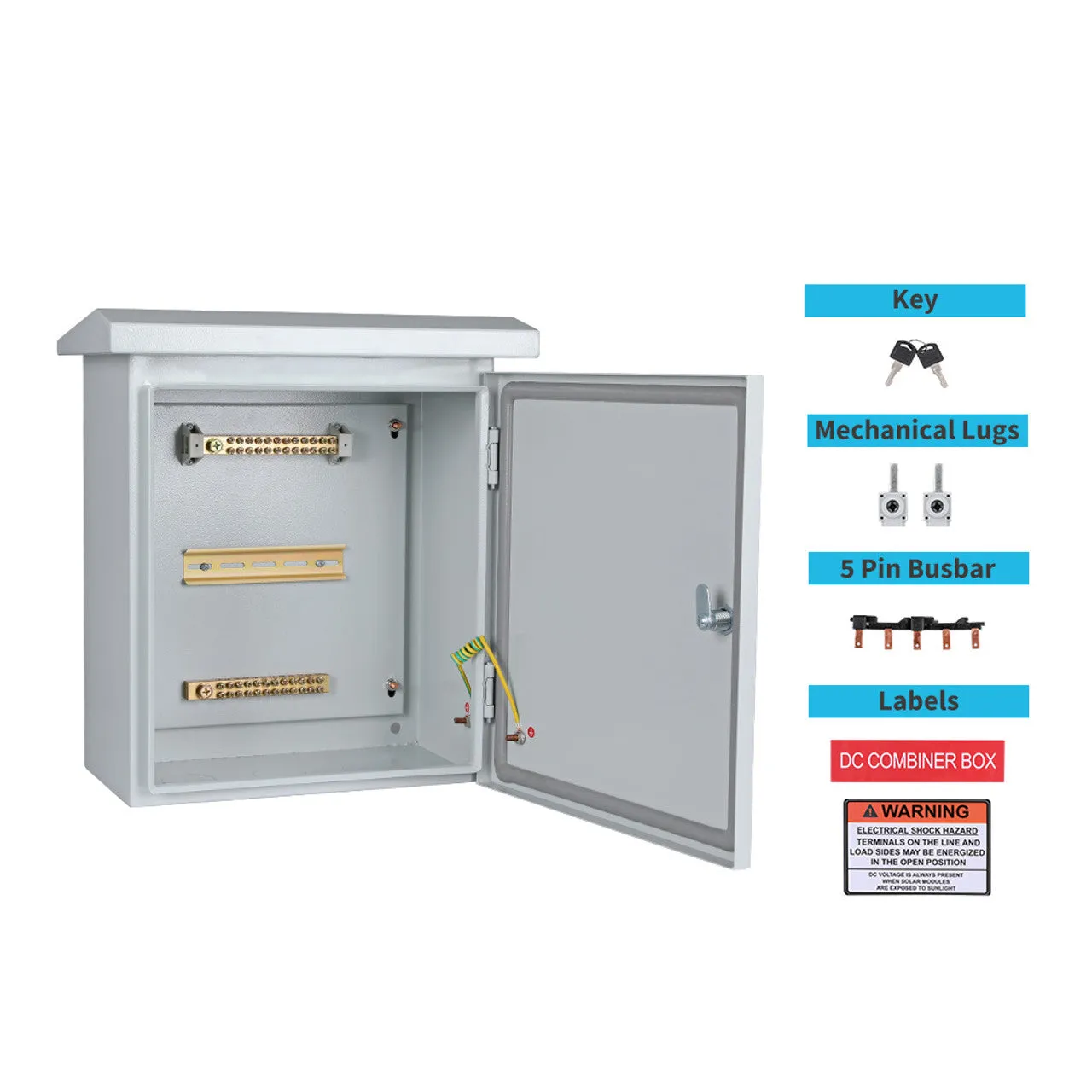

What's in the Box:

1 x 5 Strings Solar Combiner Box

1 x Key

2 x Mechanical Lugs

5 x Pin Busbar

5 x Labels

1 x Instruction Manual
