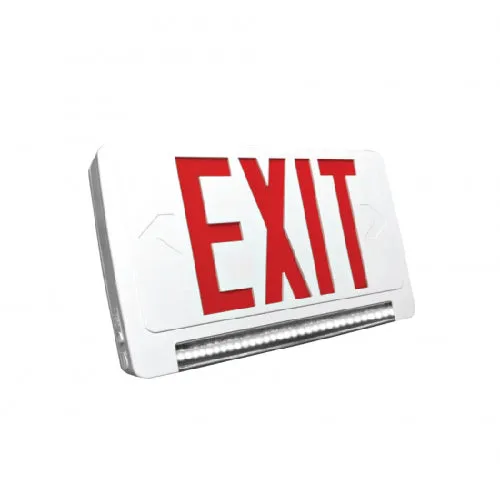

Advantage Environmental Lighting XEM4U Lightpipe LED Exit & Emergency Combo

ILLUMINATION

• Ultra-bright, energy efficient white LED emergency lighting.
• 4.5W (36 LEDs x 0.125 watts) per light pipe
• Adjustable high-performance, smooth, chrome-plated, metallized reflector and acrylic, UV-stabilized “light pipe” lens for optimal light distribution.
• Long-life, energy efficient Red or Green LED exit sign illumination.

ELECTRICAL

• Dual 120/277 voltage.
• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
• 4.8V long-life, maintenance-free, rechargeable NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED board/light pipe for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
• Remote capable standard.

MOUNTING

• EZ-snap mounting canopy included for top or end mount.
• Universal K/O pattern on back plate for wall mount.

HOUSING

• Injection-molded, engineering-grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finishes.
• EZ snap out Chevron directional indicators.

OPTIONS

• SDT: Self-diagnostic test feature performs monthly, biannually, and annually tests to ensure reliable operation and to meet electrical and life safety codes.

WARRANTY/LISTING

• Five year warranty on all electronics and housing. Battery pro-rated for five years.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL listed for damp locations. (0°C ­– 50°C)
