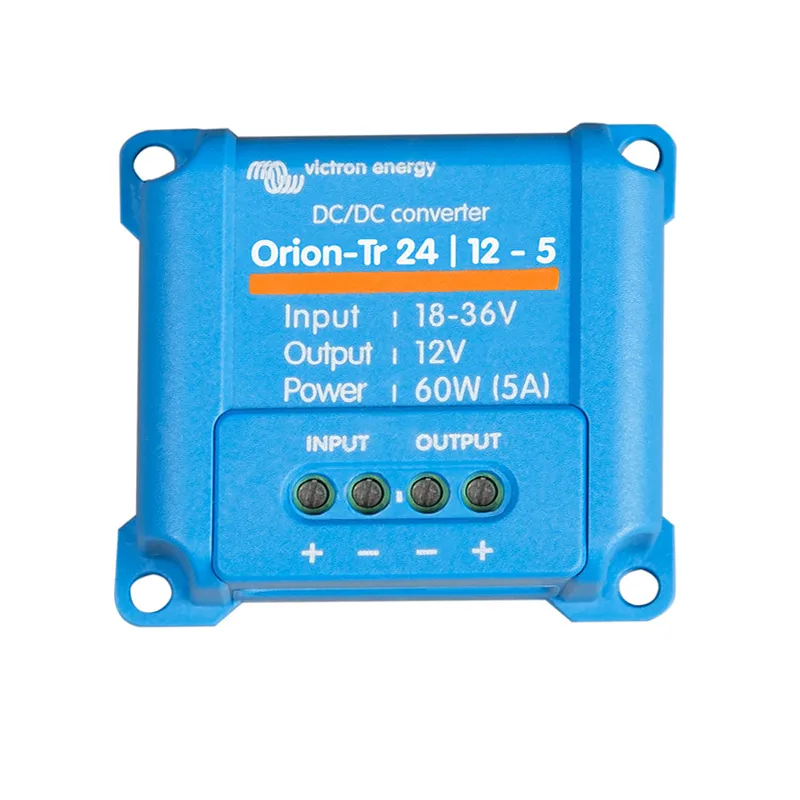

The Orion Tr charger can be used in 12V or 24V systems and is suitable for both lead acid.

Features:

• High efficiency.
• IP43 protection.
• Screw terminals.

Technical Specifications:

• Input voltage range: 18-35V.
• Output voltage: 12.7V.
• Efficiency: 95%.
• Continuous output current: 5A.
• Max. Output current: 7A.
• Galvanic isolation: No.
• Off load current: <20mA.
• Operating temperature range (derate 3% per °C above 40°C): -20 to 55°C.
• DC connection: Screw terminals.
• Maximum cable cross-section: 3.3mm² AWG12.
• Weight: 0.09kg.
• Dimensions (hxwxd): 53mm x 51mm x 27mm.
• 5 year warranty.
