Product Details
＋
The Rich Solar MEGA 400 Watt Monocrystalline Solar Panel Manual Is The Best Panel For Grid-Tie And Off-Grid
Been looking for the off-grid solar system for you? This MEGA 400 Watt Solar Panel is one of the most best solar panels for grid-tie and off-grid system. Get this to start your solar adventure today!
Rich Solar MEGA 400 Watt Monocrystalline Solar Panel Features
- 10 buss bar solar cell configuration
- Mono PERC Technology
- Lightweight anodized aluminum frame
- High Transmission, AR (anti-reflective) Coated Tempered Glass
- Plug and play junction box
- Industry standard quick connect cables work in series or in parallel
- Certified to withstand challenging environmental conditions
- Excellent low light performance on cloudy days, mornings and evenings
What's In The Box

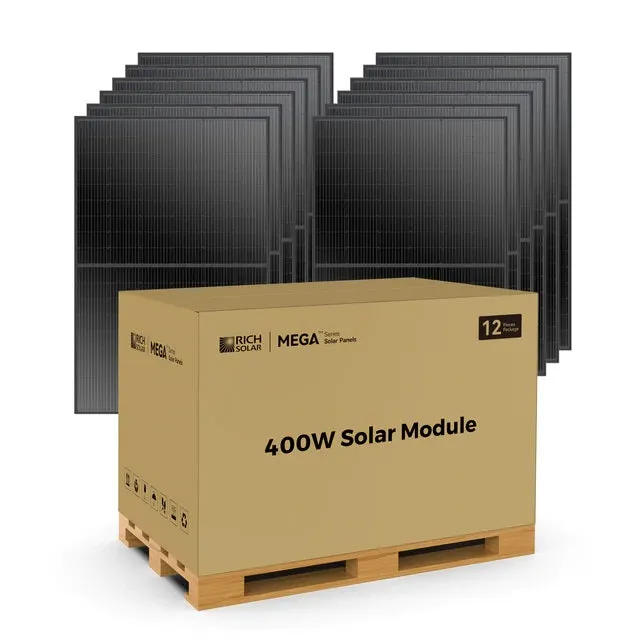

- 1 x Rich Solar MEGA 400 Watt Monocrystalline Solar Panel
- IP65 rated waterproof junction box
- IP67 rated waterproof solar connectors
- Bypass diodes built-in the junction box
25-Year Warranty
- Rich Solar provides a 25-year output warranty for this solar panel.
Rich Solar MEGA 400 Watt Monocrystalline Solar Panel Specifications
- Maximum Power(Pmax): 400W
- Maximum Power Voltage(Vmp): 30.9V
- Maximum Power Current(Imp): 12.9A
- Open Circuit Voltage(Voc): 37.1V
- Short Circuit Current(Isc):13.7A
- Maximum System Voltage(Vmax): 1500VDC
- Temperature Range: -40°F ~ 185°F
- Weight: 49.4 lbs
- Dimensions: 77.8 x 39.4 x 1.4 in
Rich Solar MEGA 400 Watt Monocrystalline Solar Panel Installation
- Easy installation and handling for various applications (high-end off-grid and mobile applications)
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
- Compatible with on-grid and off-grid inverters
