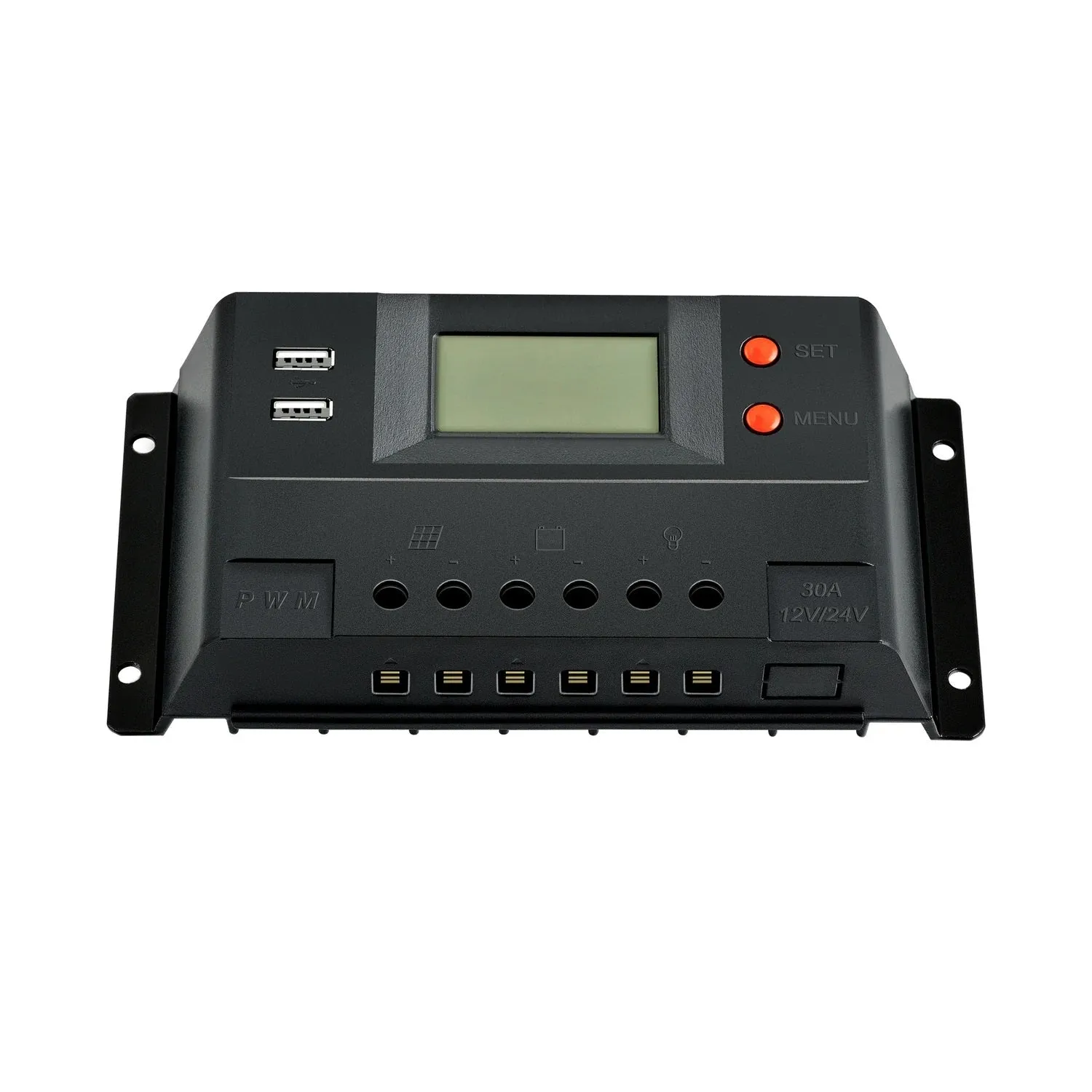

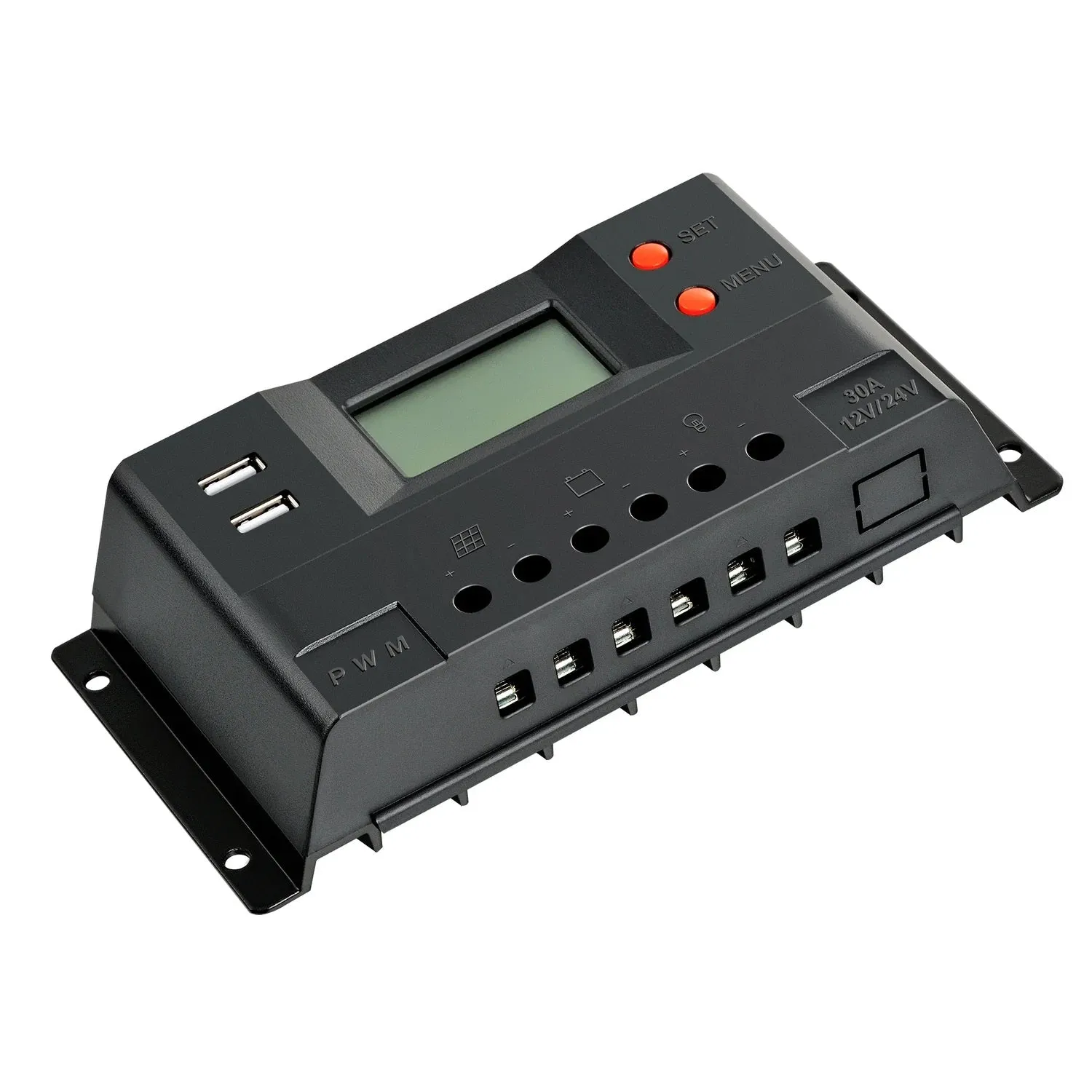

Optimize Your Off-Grid System With The Rich Solar 30 Amp PWM Solar Charge Controller

The Rich Solar 30 Amp PWM Solar Charge Controller is a vital component for any off-grid solar power system, ensuring the safe, efficient, and long-lasting operation of your batteries. This user-friendly controller safeguards your batteries from overcharging, extending their lifespan and maximizing the performance of your solar setup.

What's In The Box

• 1 x RICH SOLAR 30 Amp PWM Solar Charge Controller

Rich Solar 30 Amp PWM Solar Charge Controller Specifications

• PV Voltage: ≤50V
• Rated Current: 30A
• System Voltage: 12V/24V Auto
• HVD: 16.00V×1/×2/×3/×4(0.5V)
• Rated Discharging Current: 30A
• No-Load Loss: ≤13mA
• Charge Loop Voltage Drop: ≤0.24V
• Discharge Loop Voltage Drop: ≤ 0.1V
• Charging Mode: PWM 4-stage（bulk, absorption, float, equalized）
• Voltage of Float Charging: 13.8(13V~15V)×1/×2
• Voltage of Absorption Charging: 14.4V(13V~15V) ×1/×2
• Voltage of Equalized Charging: 14.6V(13V~15.5V) ×1/×2
• Duration of Equalized Charging: 2hs
• LVD: 10.7V(10V~14V) ×1/×2
• LVR: 12.6V(10V~14V) ×1/×2
• Load Working Mode: Regular control mode, Light control with switch-off point at night and switch-on point before dawn, Light control mode
• Light Control Voltage: 5V(1V~10V) ×1/×2
• Battery Type: GEL, SLD, FLD and USR (default)
• USB: 5V 1A

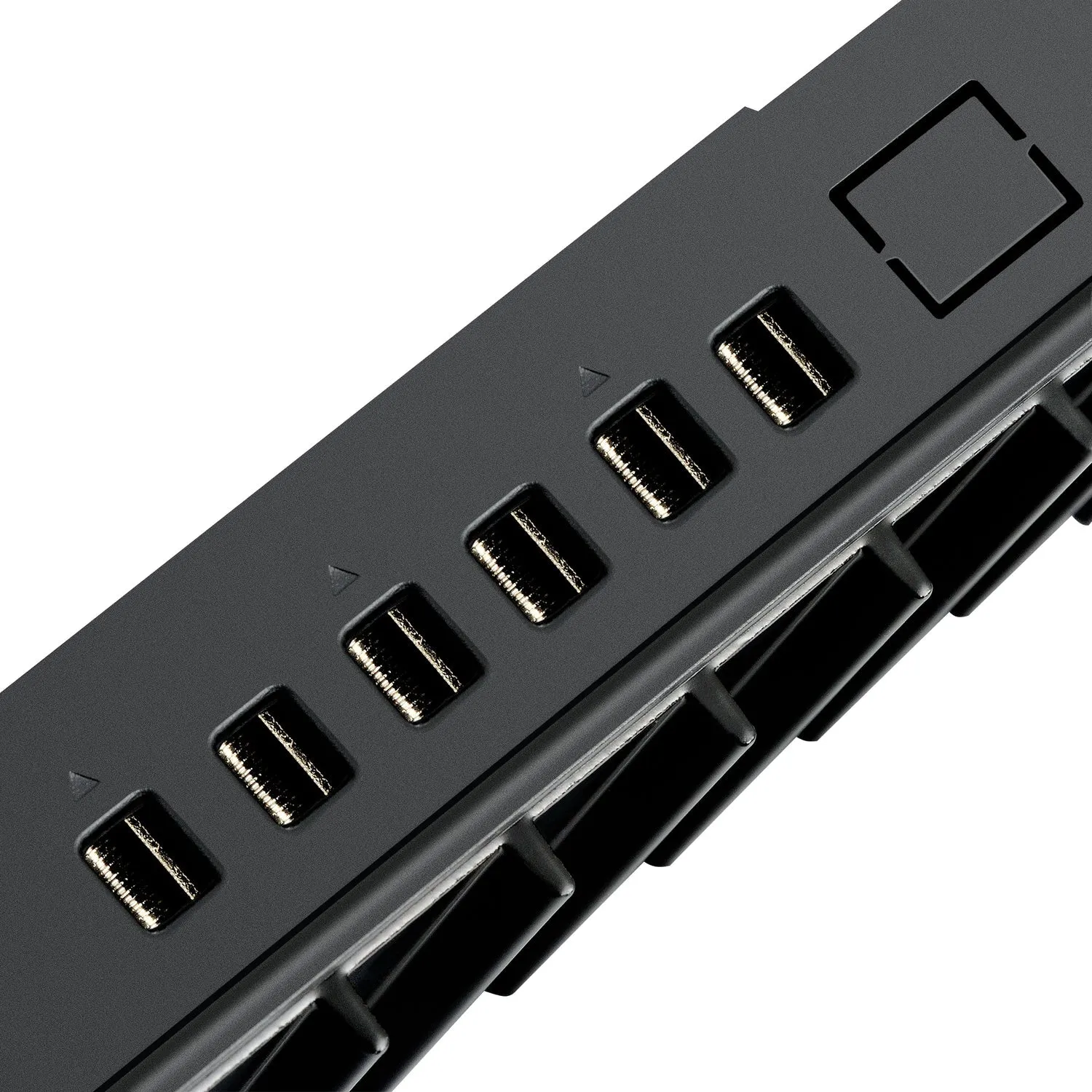

• Wiring: PCB terminal, ≤16mm2
• Working Temperature: -20 ~ 55 °C
