Product Details
＋

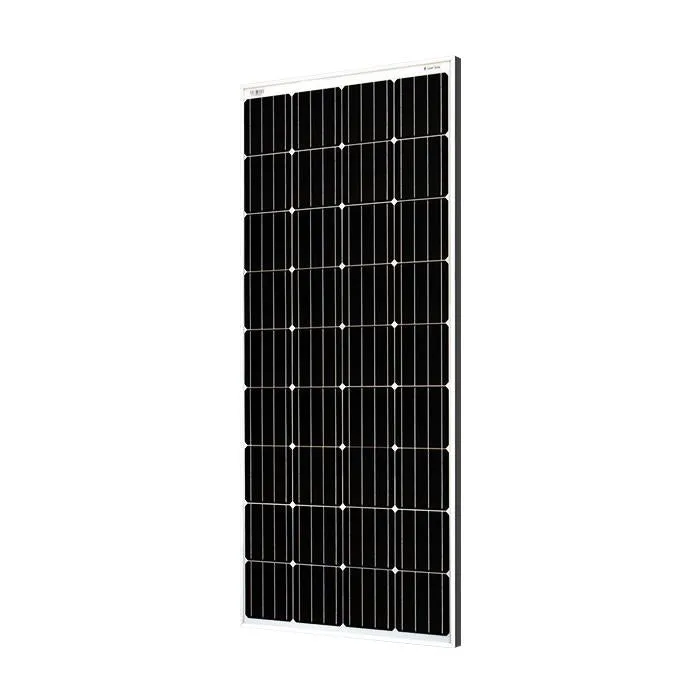

80W solar panel Monocrystalline cell Photovoltaic module solar energy charge 12v battery for home use.
Features:
- Basic component for on-grid, off-grid solar panel system, RV, boat, Green house solar panel system
- Easy Installation with pre-drilled holes. each solar panel comes with 90cm 12AWG cable with MC4 Male/Female quick connector.
- By-Pass Diode minimized the impact of shade.
- Waterproof IP-65 Rated Junction Box: Advanced water and dustproof level (complete protection against environmental particles and low-pressure water jets).
- Resistance to Salt Corrosion and Humidity
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa)
Specifications:
| Rated Power | 80W |
| Style | Monocrystalline |
| Operating Voltage(Vmp) | 18V |
| Open circuit voltage（Voc) | 21.6V |
| Short circuit current (Isc) | 6.06A |
| Working current(Imp) | 4.44A |
| Max System Voltage | 1000VDC(IEC)/600V DC(UL) |
| Temperature range | -40 Degree to 80 Degree |
| Dimensions | 1175*530*3MM |
| Weight | 6.5kg |
