Features

• Perfect chargers for any type of battery.
• Suitable for AC and DC supply (AC-DC and DC-DC operation).
• Controlled charging.
• Use of TG Chargers as a power supply.
• To increase battery life: temperature compensation.
• Battery voltage sense.

Technical Data

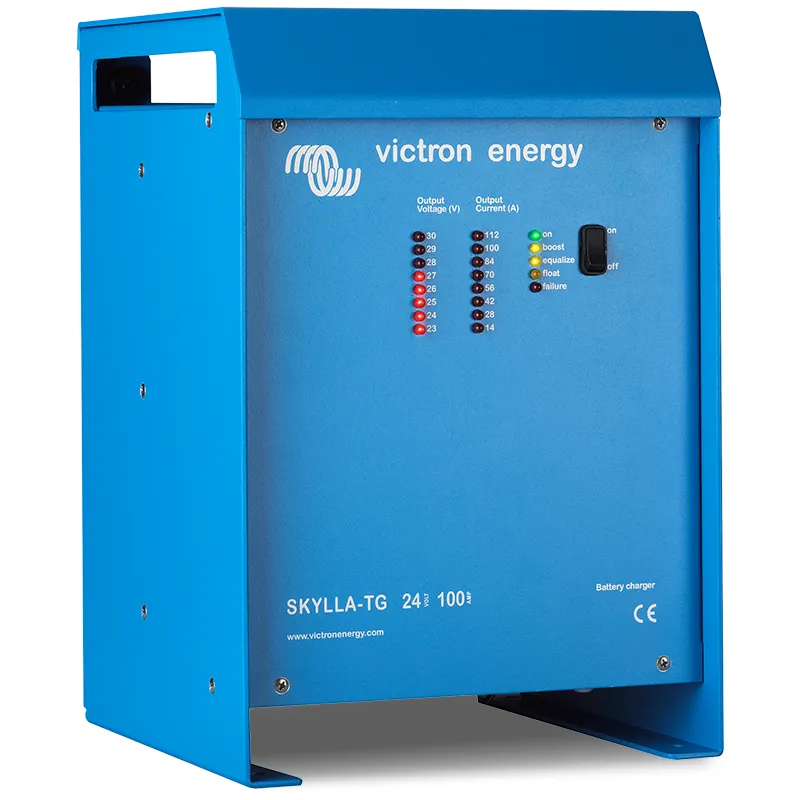

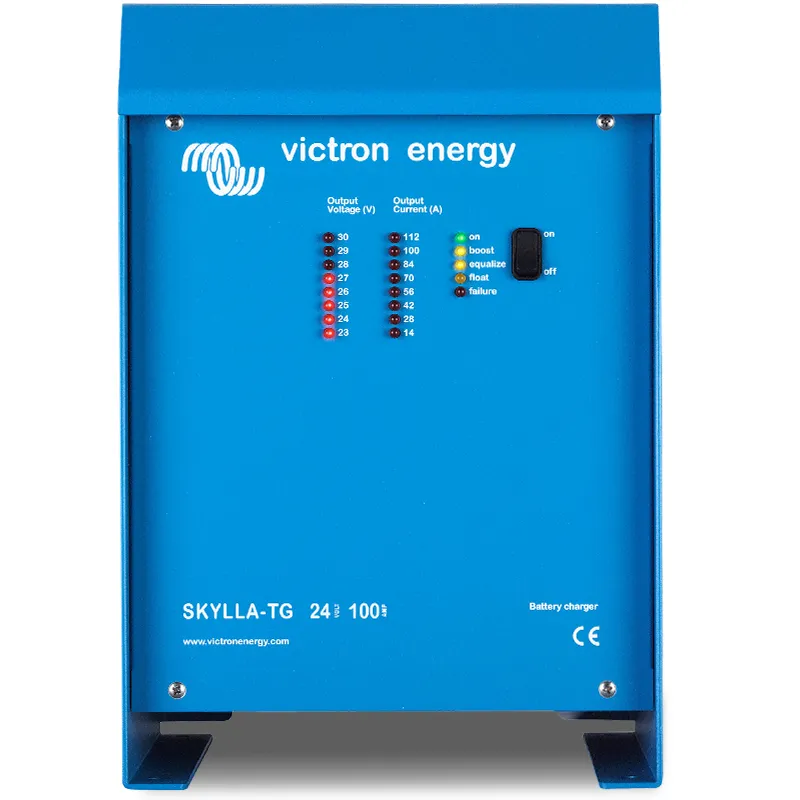

• Model: Skylla 24/100 TG.
• Input voltage (VAC): 230V.
• Input voltage range (VAC): 185-264 V.
• Input voltage range (VDC): 180-400 V.
• Frequency (Hz): 45-65 Hz.
• Power factor: 1.
• Charge voltage 'absorption' (VDC): 28.5 V.
• Charge voltage 'float' (VDC): 26.5 V.
• Charge Current house battery (A): 100 A.
• Charge Current starter battery (A): 4 A.
• Battery capacity (Ah): 500-1000 Ah.
• Temperature sensor: Yes.
• Can be used as power supply: Yes.

Enclosure

• Material & Colour: Aluminium (blue RAL 5012).
• Battery-connection: M8 studs.
• 230 VAC-connection screw-clamp: 2,5mm² (AWG 6).
• Protection category: IP 21.
• Weight kg: 10 kg.
• Dimensions (hxwxd in mm): 365mm x 250mm x 257mm.
