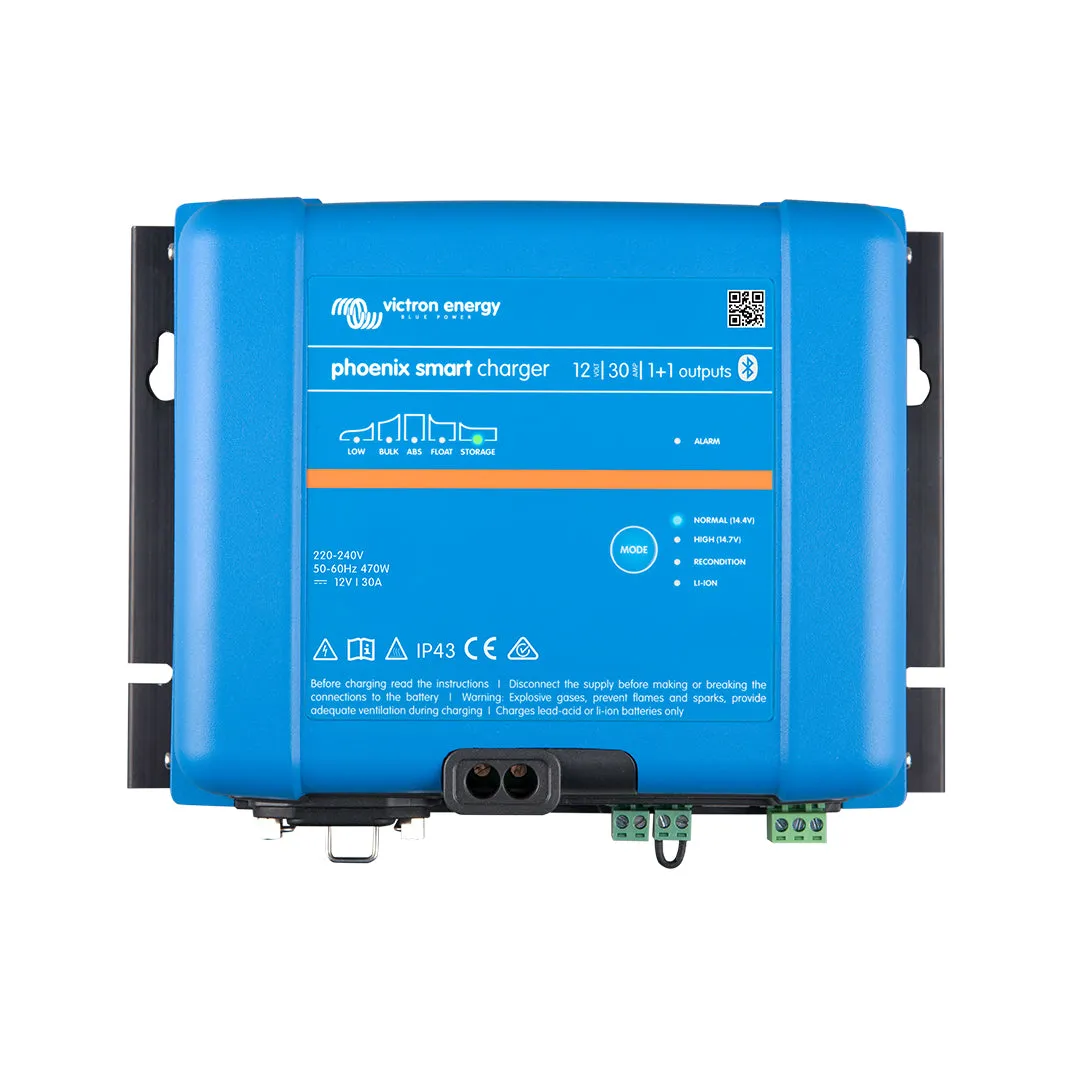

The Phoenix charger features a microprocessor controlled adaptive battery management system that can be pre-set to suit different types of batteries. The adaptive feature will automatically optimise the charge process relative to the way the battery is being used.

Features :

• Bluetooth Smart enabled .
• Automatic voltage compensation.
• Adaptive 6-stage charge algorithm: bulk – absorption – recondition – float – storage.
• Also charges Li-ion (LiFePO₄) batteries.
• Remote on-off .
• VE.Direct interface.
• Programmable relay .

Technical Specifications:

• Input voltage : 230 VAC (range: 210 – 250 V).
• DC input voltage range:290 – 355 VDC.
• Efficiency: 12/30: 94%.
• Humidity (non-condensing): max 95%.
• Fully programmable: Yes, with Bluetooth and/or VE.Direct.
• Relay (programmable): DC rating: 5 A up to 28 VDC.
• Material & Colour aluminium: (blue RAL 5012).

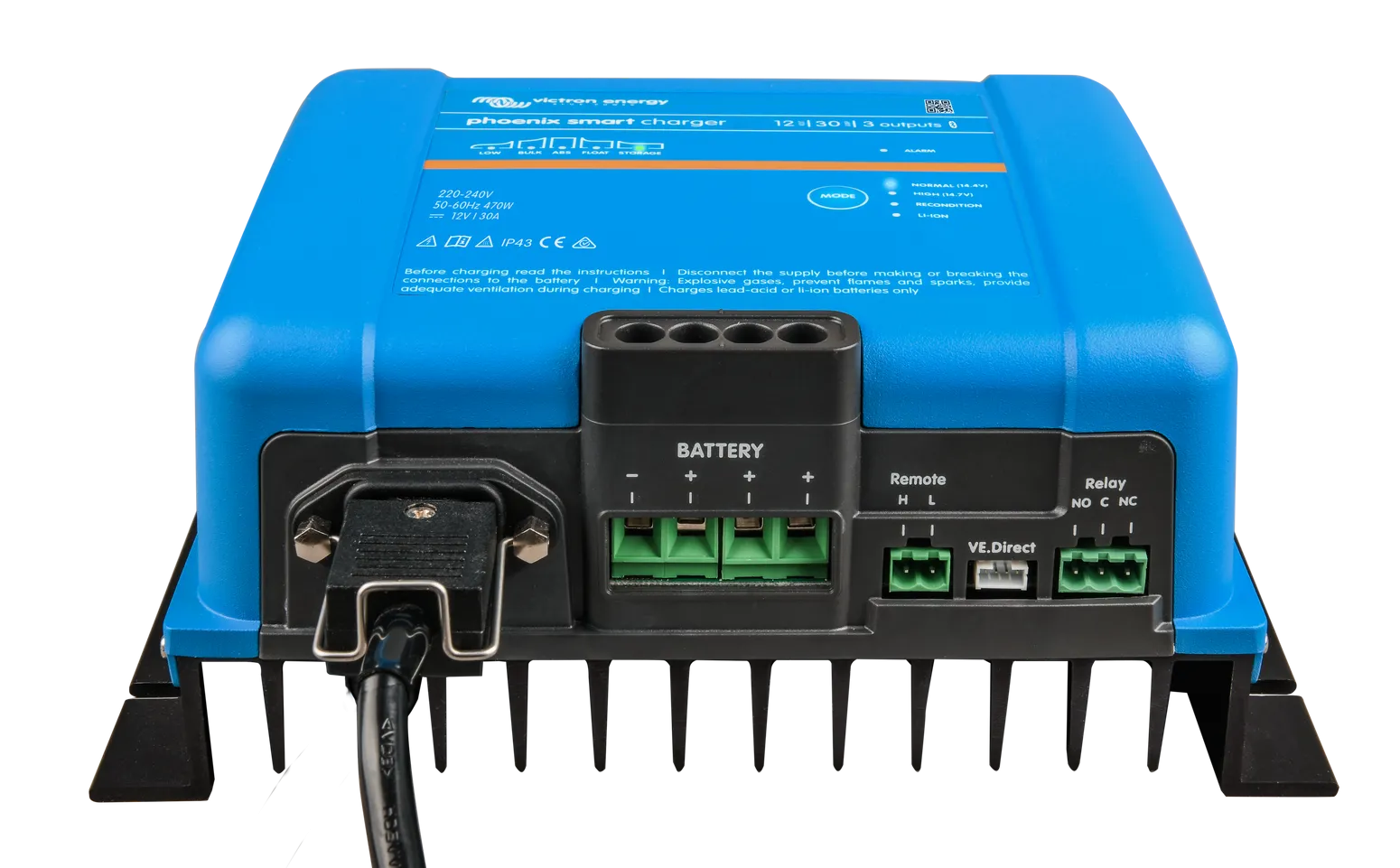

• Battery-connection: Screw terminals 16 mm² (AWG6).
• AC-connection: IEC 320 C14 inlet with retainer clip (AC cord with country specific plug must be ordered separately).
• Protection category IP43 (electronic components), IP22 (connection area).
• Weight kg: 3,5 kg.
• Dimensions (hxwxd): 180x249x100mm.
