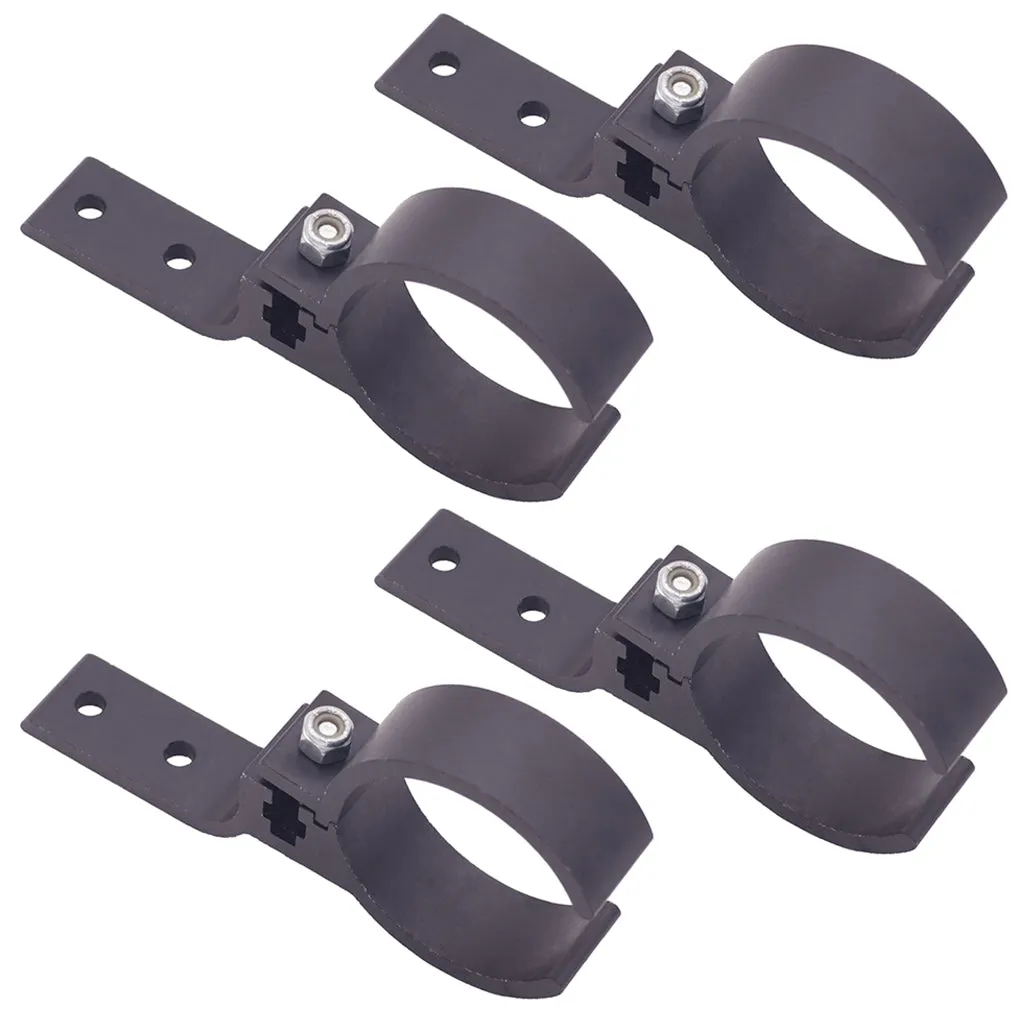

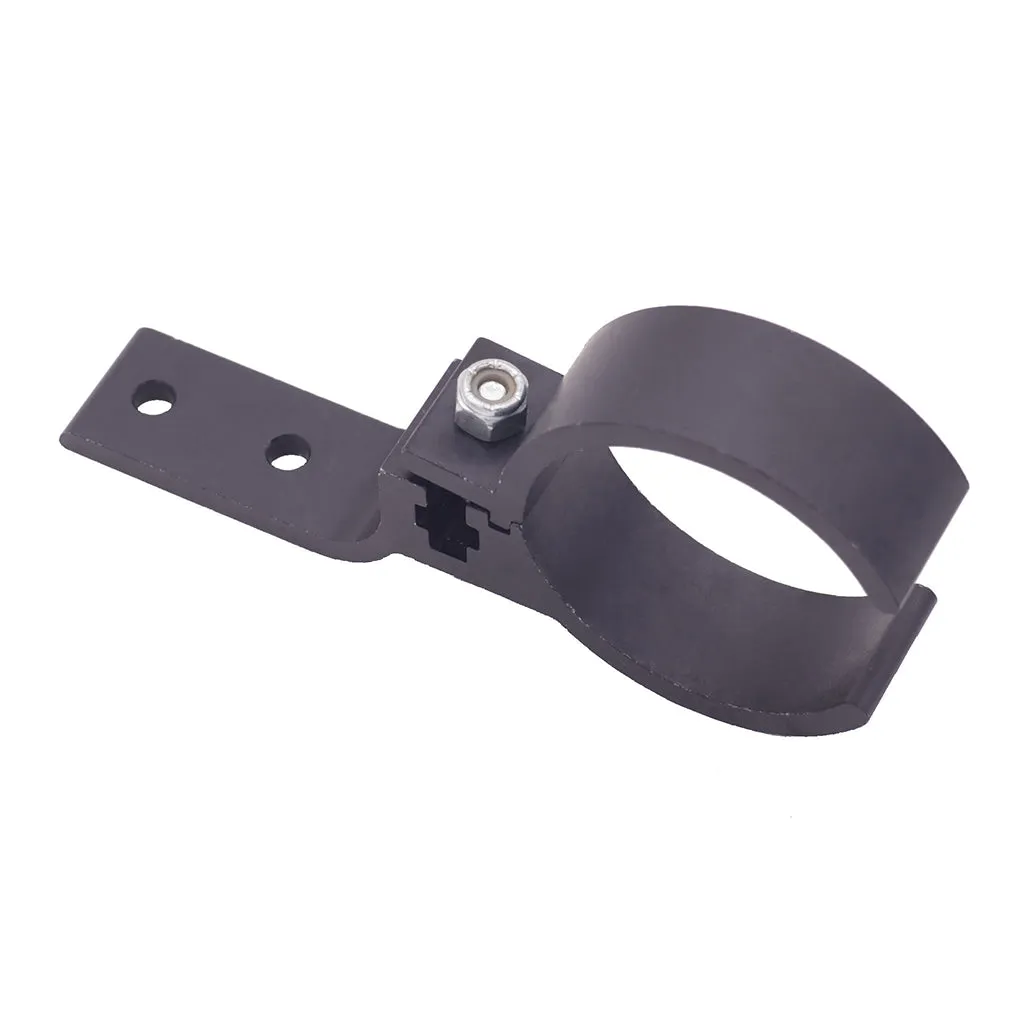

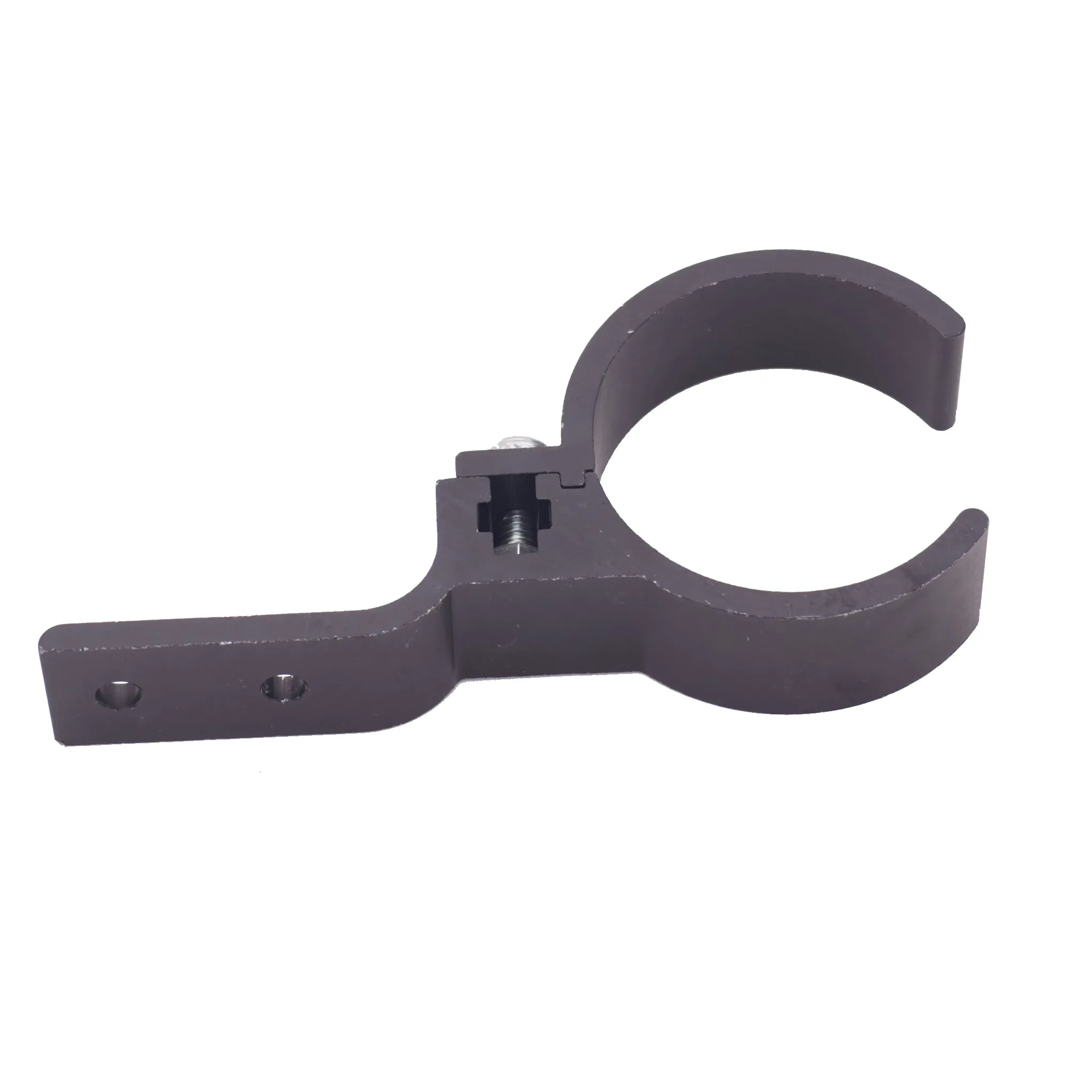

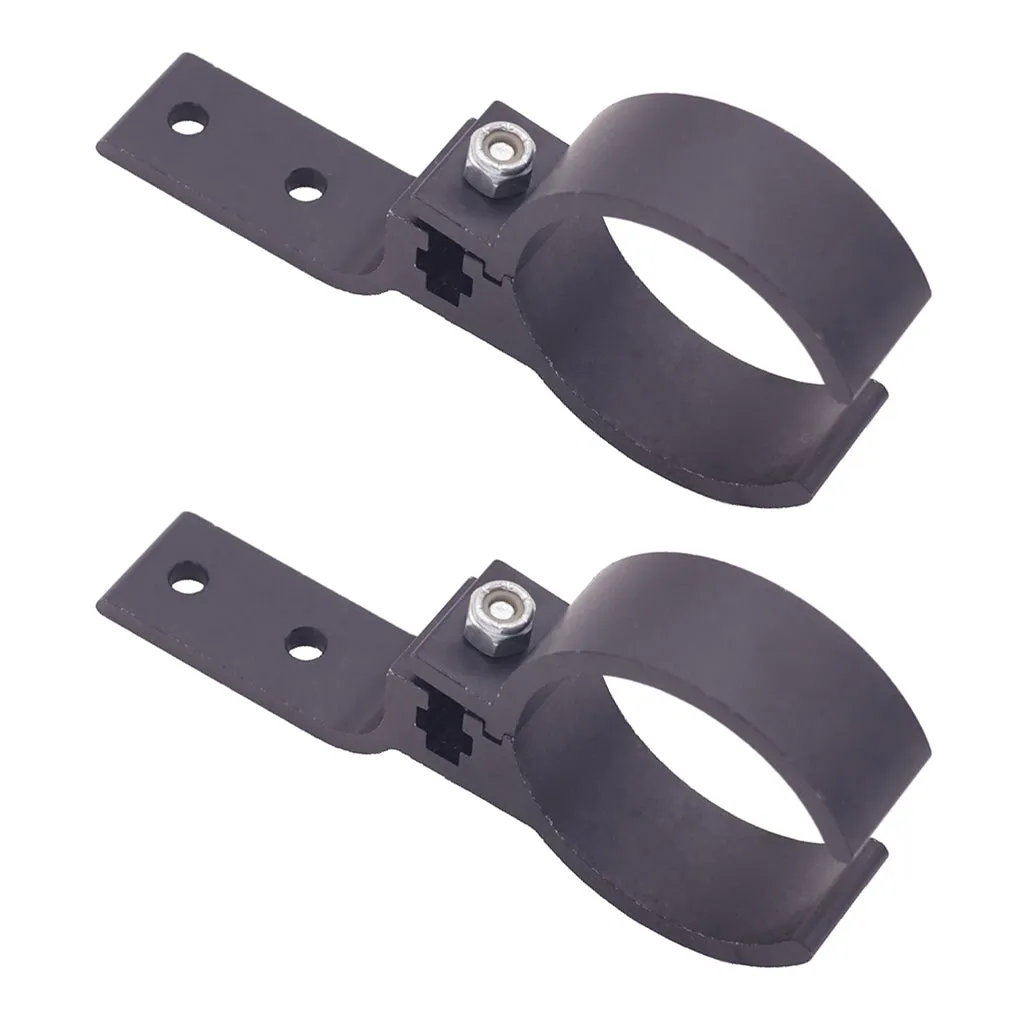

• Aluminum header clamps provide additional security for mounting pool solar panels in high wind climates.
• Attaches to the top (outlet) header and designed to be used in conjunction with the standard outlet header hold-down bracket assembly.
• Features a black anodized finish.

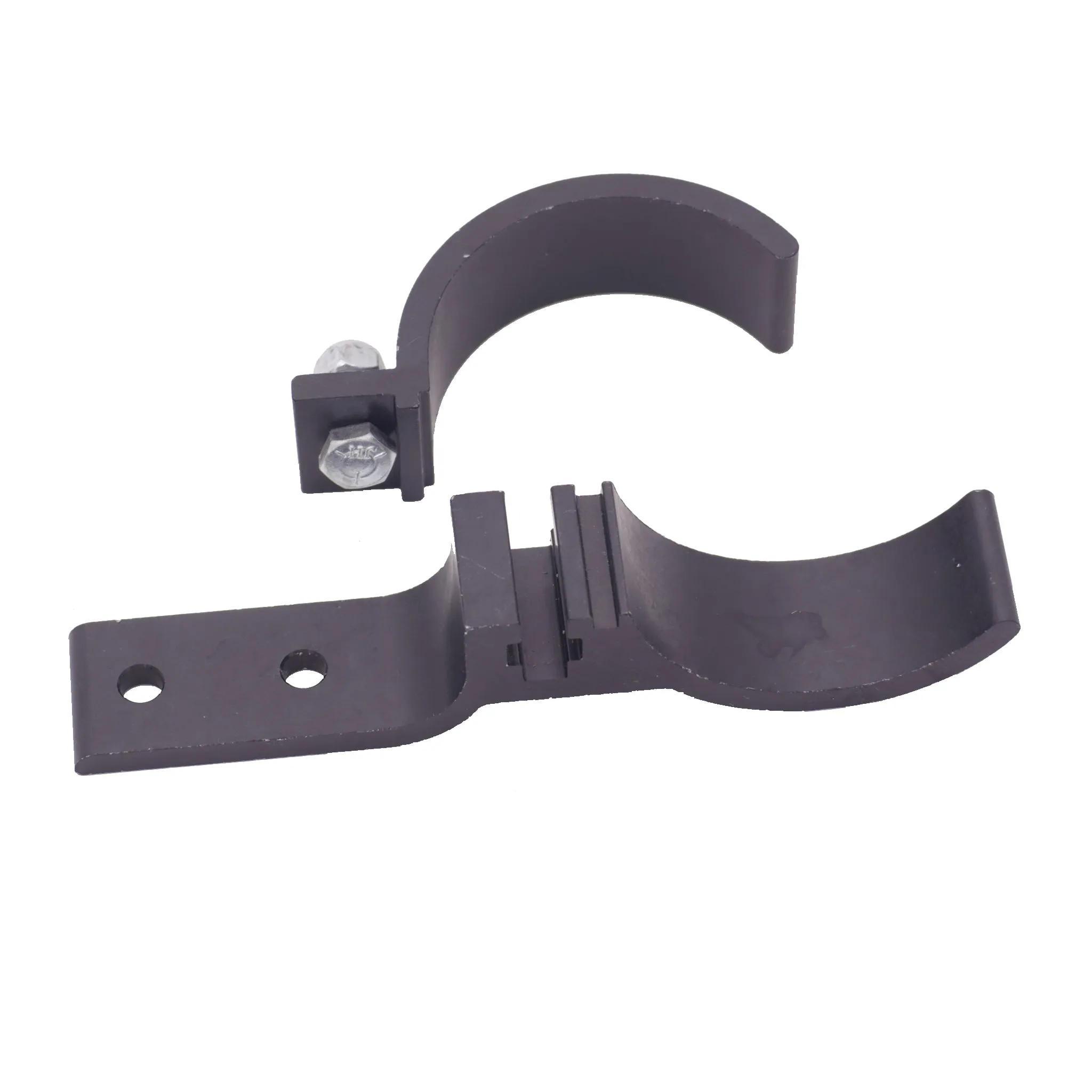

• Each bracket assembly includes the 2-piece clamp, hex bolt and nyloc nut.

For maximum security, use in conjunction with high-wind installation kits, which provide specialized hardware for securing the lower (inlet) header manifold. These kits feature a spring-tension design that allows for normal expansion and contraction, while also providing additional security.

• High-Wind Panel Installation Kit (PN: 12035)
• High-Wind Row Installation Kit (PN: 12143)

Compatibility: Will work with any solar pool heater panel that has round 1.5” or 2" I.D. header manifolds and makes attachments with rubber hose type connectors.

MEASUREMENTS, SIZING & PRODUCT DATA

1.9" (1-7/8") O.D. Header:

• For solar pool panels containing a 1-1/2″ I.D. header (1.5″ manifold I.D. / 1.9″ manifold O.D.)

2.375" (2-3/8") O.D. Header:

• For solar pool panels containing a 2″ I.D. header (2″ manifold I.D. / 2.375″ manifold O.D.).

Manufacturer: Solar Pool Supply
MPN: 10117
10117-1 (1.9" (1-7/8") O.D. Header)
10117-2 (2.375" (2-3/8") O.D. Header)
