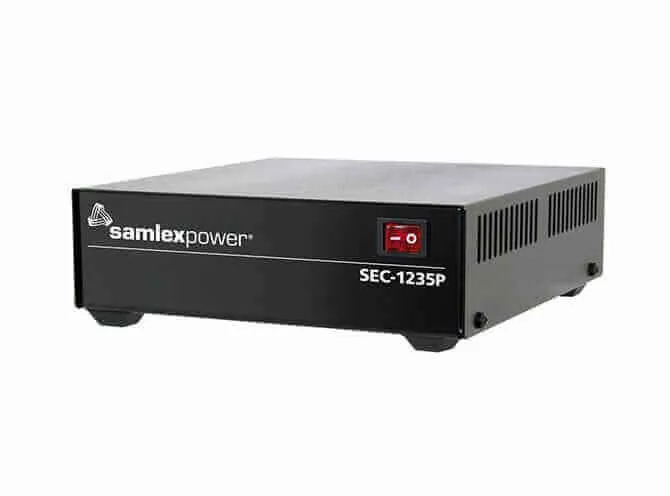

Samlex SEC-1235P

30 Amp Switching Power Supply

The new technologically advanced SEC-1235P desktop power supplies are lighter, quieter, power factor corrected, and have a universal AC input of 100 to 240 Volts, 50/60 Hz. These premium, high efficiency power supplies are UL safety listed and CE certified to the newly released IEC 62368-1 safety standard for use all over the globe. These advanced switch-mode DC power supplies were designed specifically for use with land mobile radio. The power supplies produce clean reliable power and new circuit innovations minimize output voltage ripple and RFI. The AC-DC power supply conforms to FCC Part 15(B), class B digital device, and have Efficiency Level VI.

3 Year Limited Warranty

Features

• Universal Input: 100 to 240 VAC, 50/60 Hz
• Power Factor Corrected
• Complies with Minimum Energy Performance Standard (MEPS) for external power supplies
• Efficiency Level VI
• Advanced switch-mode technology
• Reliable power with minimum weight and size
• Circuit innovations minimize output voltage ripple and RFI
• UL listed to both USA & Canadian safety standards, CE certified for use all over the globe

Specifications

• Input: 100-240 VAC
• Output: 13.8 VDC
• Amps: 30 Amps
• Weight: 3.7 (lbs)Weight: 1.67 (kg)
• Dimensions: 7.3 x 8.2 x 2.3 (in)
• Dimensions: 18.5 x 20.8 x 5.95 (cm)
• Safety: UL, FCC, CE

Applications

• Two-way radio base stations
• Communications systems
• Security systems
• Test equipment
• GPS receivers
• Automotive & Marine displays
• DC computers
• 12 Volt lighting systems
• OEM applications
