Product Details
＋

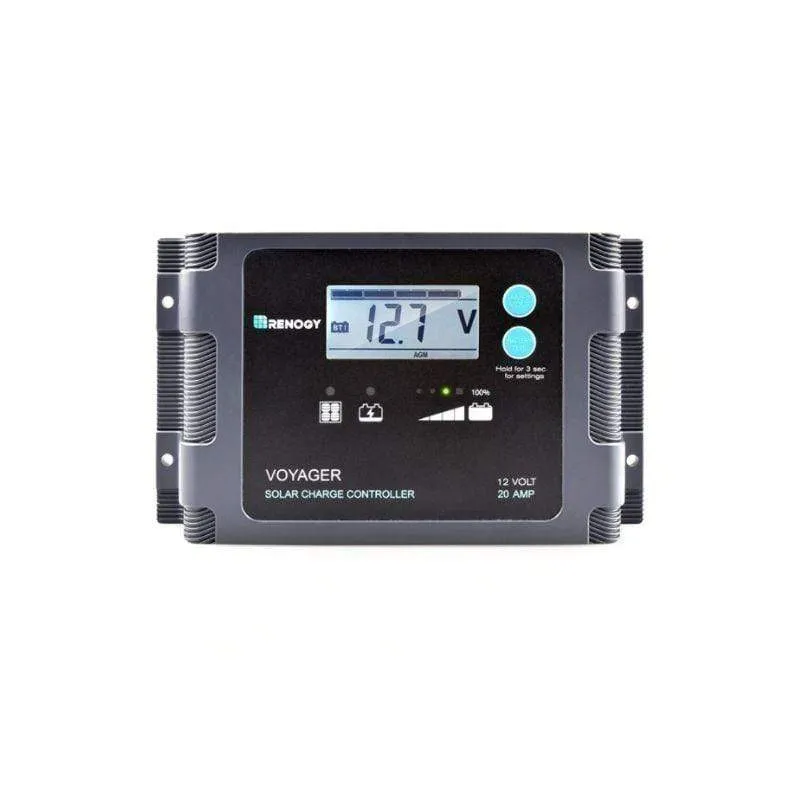

Renogy Voyager - 20A PWM Waterproof Charge Controller w/ LCD Display & LED Bar
The 20A Voyager is Renogy's first waterproof PWM charge controller. Featuring a sophisticated and comprehensive LED bar for charge state identification and a bright blue back-lit LCD for displaying system information including error codes, the Voyager was engineered to be of world-class quality.
Suitable for 12V off-grid applications, the Voyager can charge up to 7 different battery types, including lithium ion! Ensure your batteries's longevity thanks to its advanced and efficient 5-Stage battery charging algorithm and stay worry-free as the Voyager is equipped with multiple electronic protections.
Renogy Voyager - 20A PWM Waterproof Charge Controller Features:
- Smart PWM technology, high efficiency

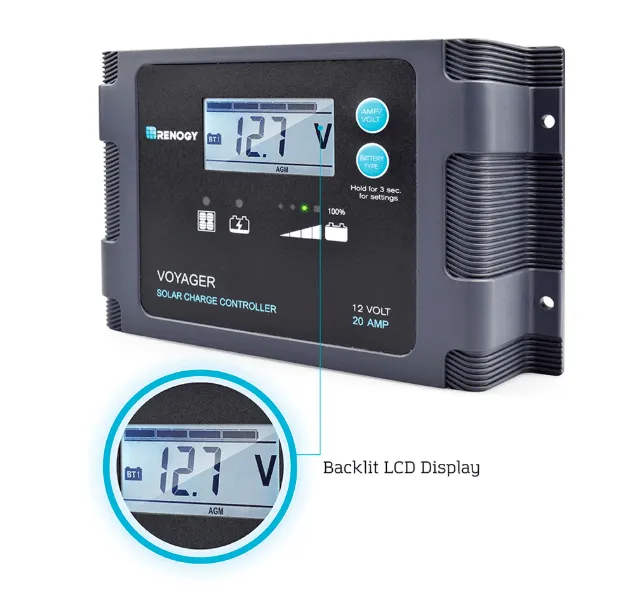

- Backlit LCD displaying system operating information and error codes
- LED Bar for easy to read charge state and battery information
- 7 Battery Type Compatible – Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, and Calcium

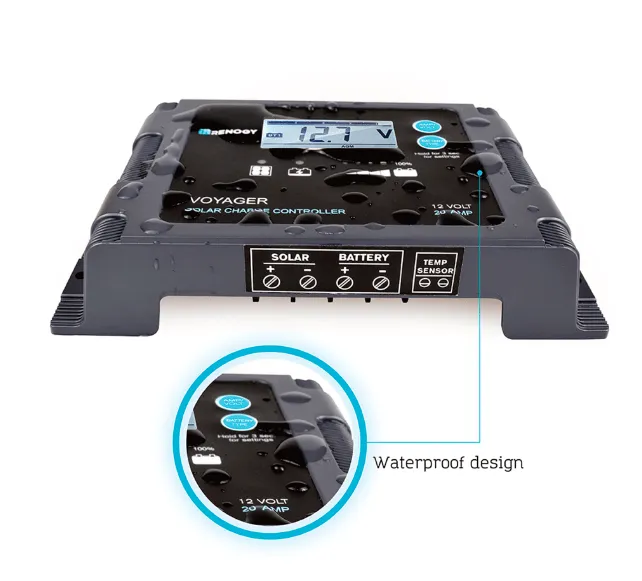

- Waterproof design, suitable for indoor or outdoor use.
- 5 Stage PWM charging: Soft-Start, Bulk, Absorption. Float, and Equalization
- Protection against: reverse polarity at battery connection, reverse current from battery to solar panel protection at night, over-temperature, and over-voltage
Renogy Voyager - 20A PWM Waterproof Charge Controller Specs:
| RENOGY 20A PWM WATERPROOF CHARGE CONTROLLER | |
|---|---|
| Nominal Voltage: 12 VDC | Grounding: Common Negative |
| Rated Charge Current: 20A | Max. PV Input Voltage: 26V |
| Self-consumption: ≤8mA | Temperature Compensation Coefficient: -24mV/°C |
| Operating Temperature: -40°F to 140°F | Storage Temperature: -40°F to 185°F |
| Enclosure: IP65 | Dimensions: 6.38 x 3.82 x 1.34 inches |
| Terminals: Up to 10 AWG | Weight: 0.88 lbs |

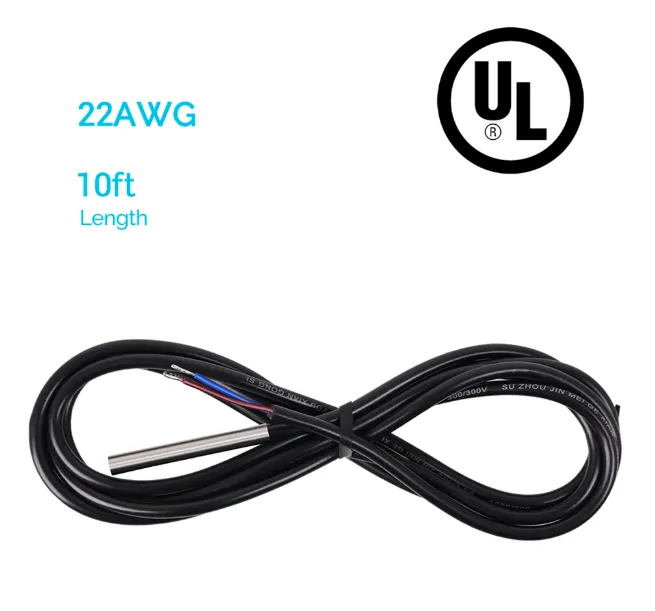

| BATTERY TEMPERATURE SENSOR FOR VOYAGER CHARGE CONTROLLERS | |
|---|---|
| Temperature Range: -4°F ~ 176 °F / -20°C~ 80°C | Cable: 22AWG, 2-Pin Conductor |
| Probe: 0.24*2.36in / 6*60mm stainless steel | Cable Length: 9.8 ft |
| Max Voltage Rating: 300V | Maximum Power: 50mW |
WARRANTY INFORMATION
| Accessories | 1-year material warranty |
