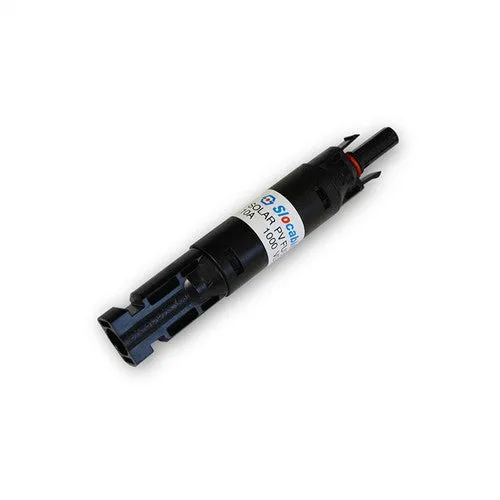

Renogy RNG-CNCT-FUSE10 - RENOGY 10A MC4 Waterproof in-Line Fuse Holder w/Fuse
Introducing the Renogy RNG-CNCT-FUSE10 - the ultimate solution for protecting your solar system from overcurrent and short circuits.
This waterproof in-line fuse holder is designed to safeguard your valuable solar panels and other equipment, ensuring uninterrupted power generation. With a 10A fuse included, this Renogy product offers peace of mind and security for your solar setup. The MC4 connectors ensure a secure and reliable connection, making installation a breeze. It features a solar connector lead on each end, making it compatible with an adaptor kit and solar panel leads.
Protect your circuit and keep your solar panels running smoothly with the Renogy RNG-CNCT-FUSE10!
Highlights:
• Compatible with PV cables with different insulation diameters
• Designed for a wide range of DC applications
• Auto-lock equipment of male and female points render connections easy and reliable.
• Waterproof - IP67 Class Protection and high current-carrying capacity
• Connector adopts touch and insertion of reed with inner-knob type
• Simple plug-and-play
• High current-carrying capacity
• Protection Class II
SPECIFICATIONS:
Rated Current: 10A
Degree of Protection: IP2*/IP67
Rated Voltage: 1000 V DC
Flame Class: UL94-V0
Test Voltage: 6000V (50Hz,1 min)
Safety Class: II
Overvoltage Category: CATIII
Suitable Connector: Solar Connector
Contact Resistance of Plug Connector:1mΩ
Insertion Force / Withdrawal Force: ≤50N / ≥50N
Contact Material: Copper, Silver Plated Fuse Can Replace
Insulation Material: PPO
Temperature Range: -40 to 125°C
WHAT’S IN THE BOX:
1 x Solar Connector Waterproof In-Line Fuse Holder w/ Fuse
