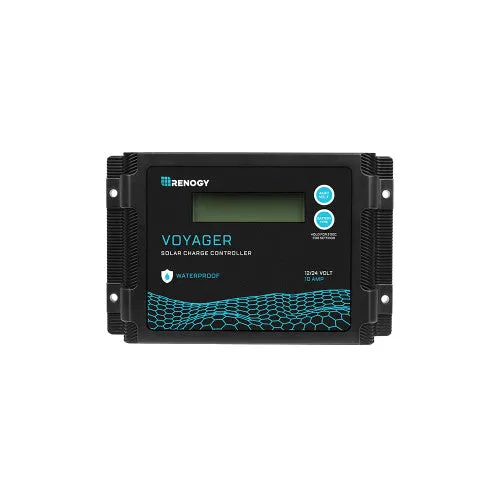

Renogy RCC10VOYP - Renogy New Edition Voyager 10A PWM Waterproof Solar Charge Controller, 10 Amp, Black
Renogy New Edition Voyager 10A PWM Waterproof solar charge controller is the much needed accessory to keep track of your solar energy system's health. Loaded with advanced PWM technology suited for 12V and 24V off-grid scenarios, the Voyager 10amp charge controller is compatible with 4 battery types including Lithium. Get real-time info of your mulitple solar panels, battery and control protections included error codes on the back-lit LCD display to make informed decisions!
Highlights:
- 12V/24V Battery compatibility with auto recognition (for non-lithium batteries)

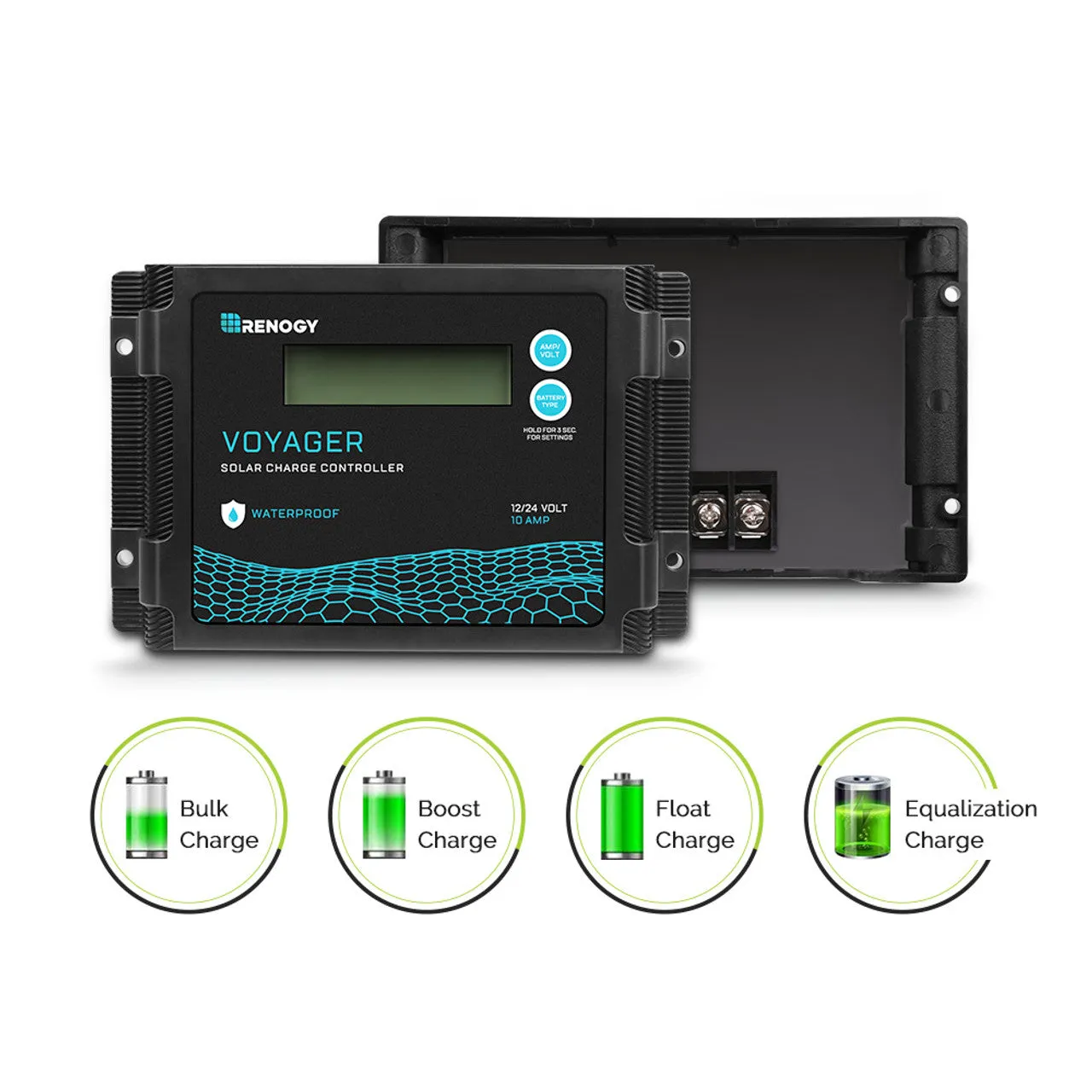

- Smart 4 stage PWM charging - Bulk, Absorption, Float, Equalization
- Compatible with Sealed/AGM, Gel, Flooded and Lithium batteries

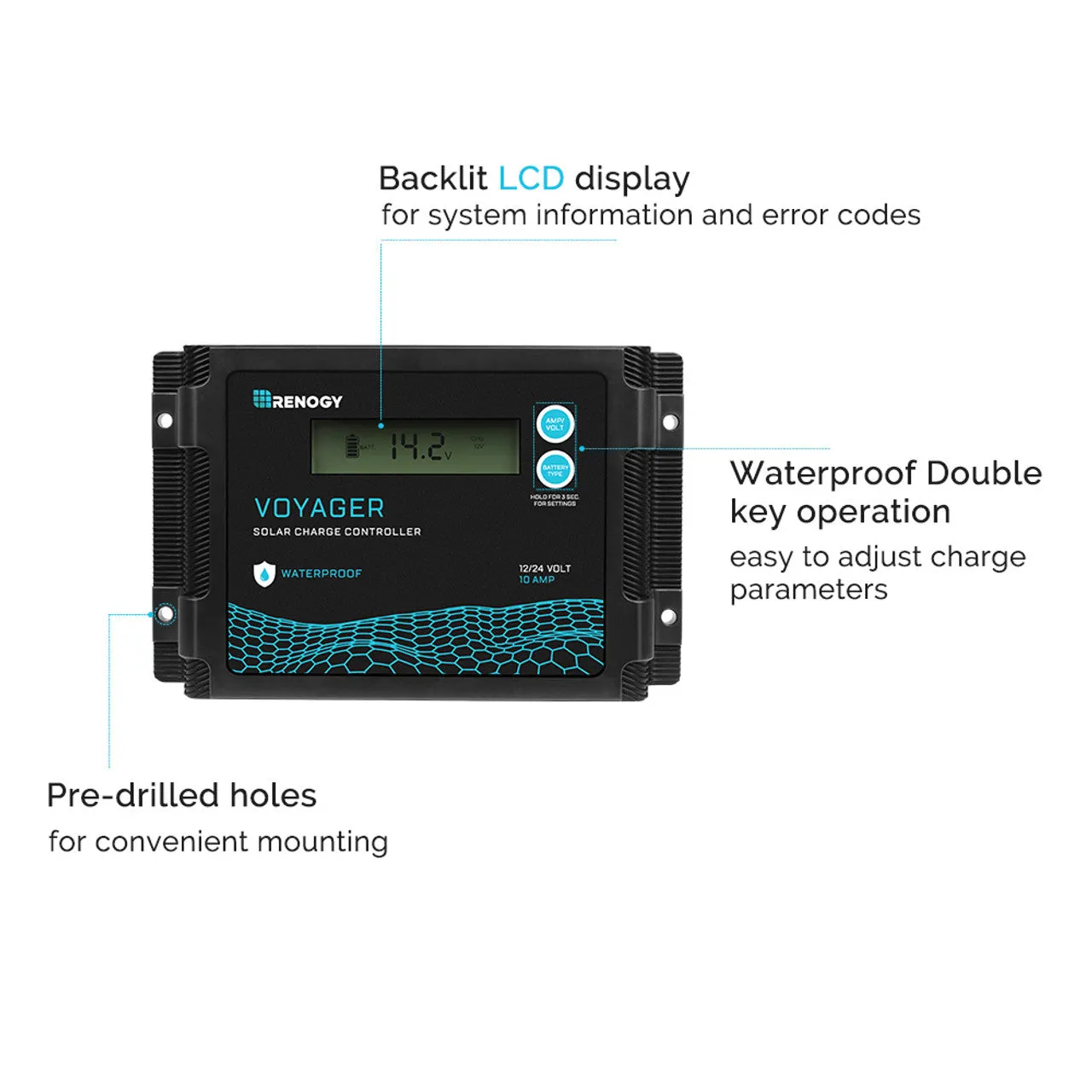

- Bright backlit LCD display for system updates including error codes

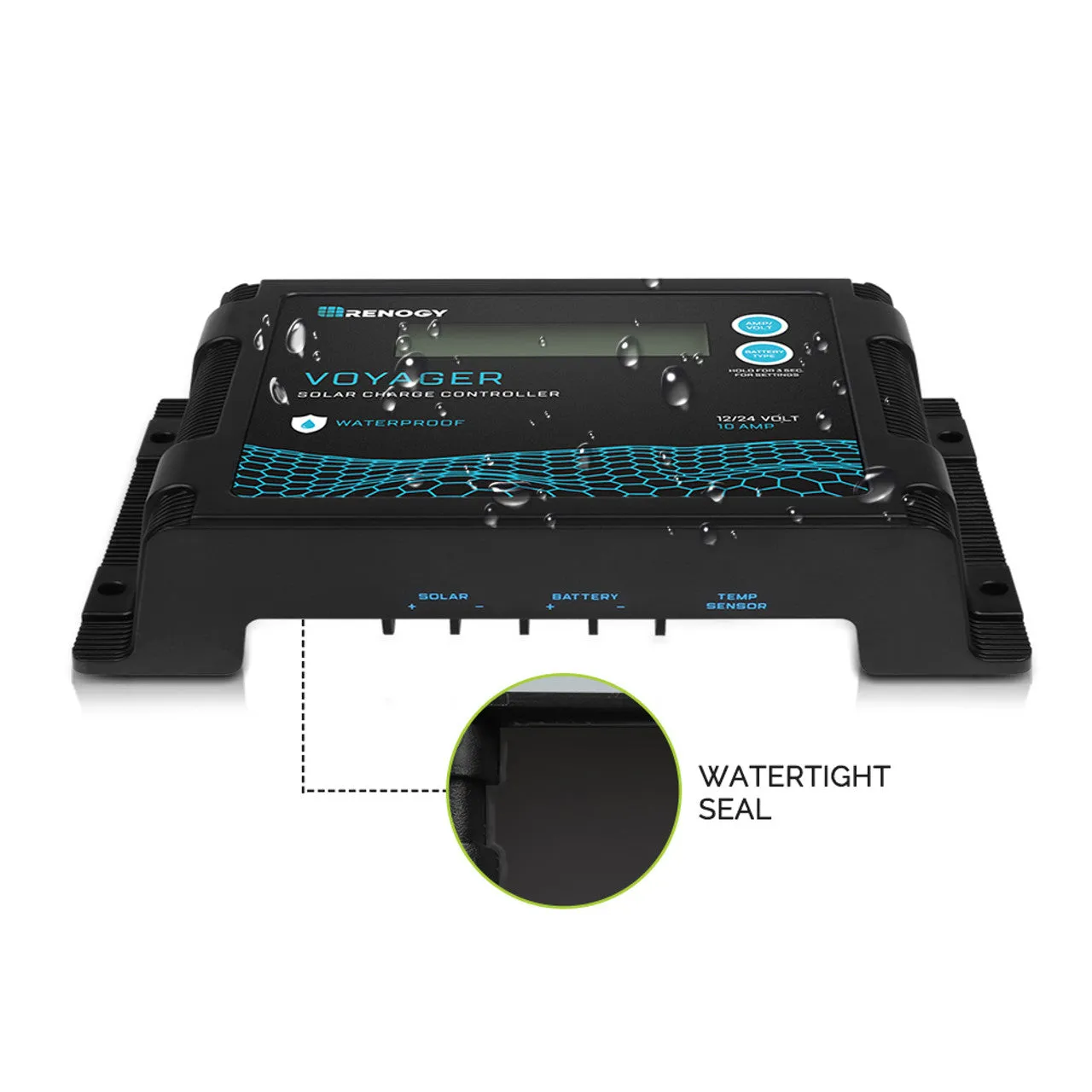

- Waterproof design
- Multiple protections for battery, controller and Solar panels including reverse polarity
Specifications:
Nominal Voltage: 12V/24V
Rated Charge Current: 10A
LCD SCREEN: Yes
Max. PV Input Voltage: 55 VDC
Max. PV Power: 130W (12V) / 260W (24V)
Self-consumption: 0.22W (12V) / 0.72W (24V)
Temperature Compensation: -3mV/°C/2V, excludes LI
Operating Temperature: -31°F to 113°F
Storage Temperature: -31°F to 167°F
Enclosure: IP67

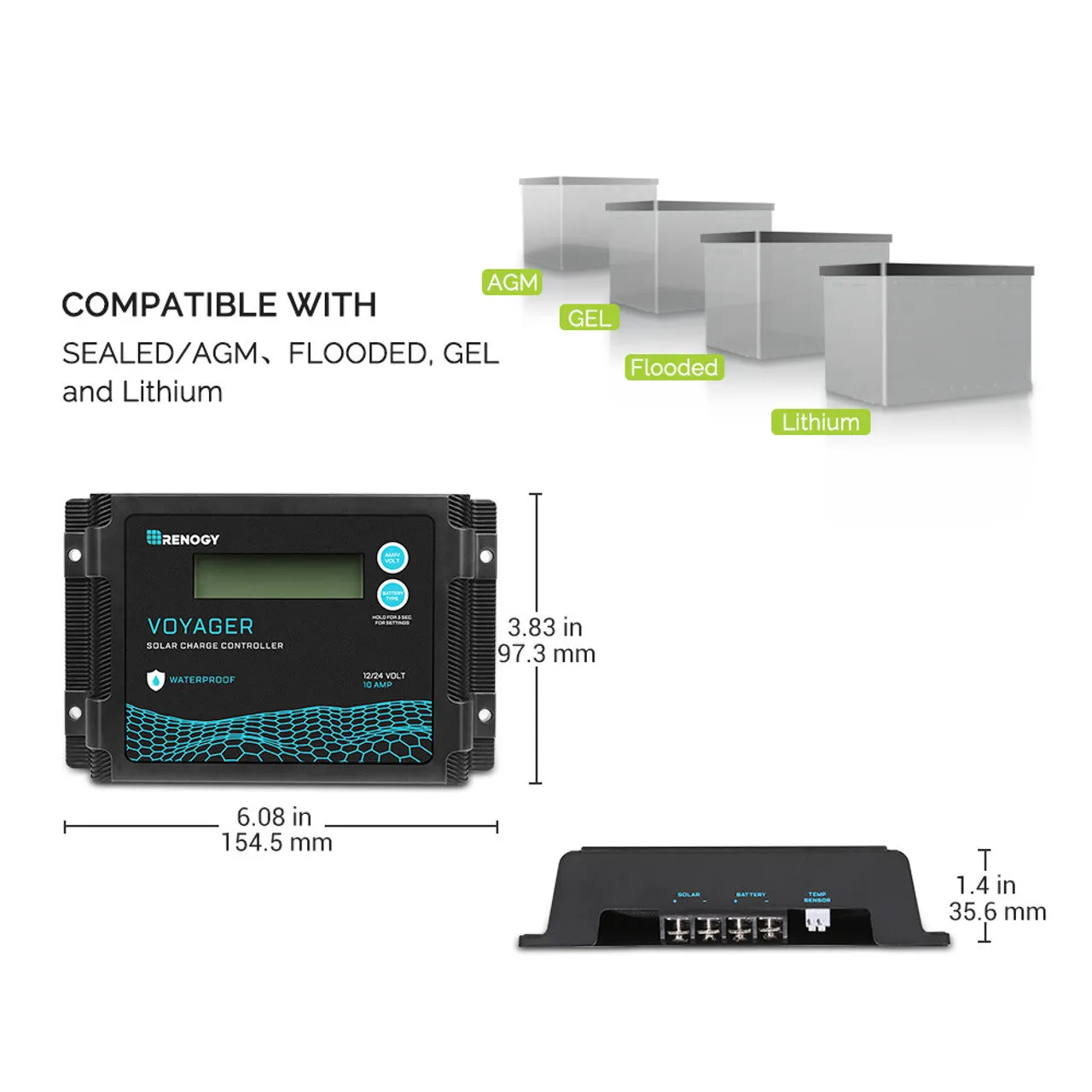

Dimensions: 6.08 x 3.83 x 1.40 inches
Terminals: 20-6 AWG, 2 pin connectors
Weight: 0.55 lbs
Grounding: Common Positive
Accessories: 2-year material warranty
Charge Controllers: Voyager
What's in the Box:
1 x New Edition Voyager 10A PWM Waterproof Solar Charge Controller
1 x User Manual
