Product Details
＋

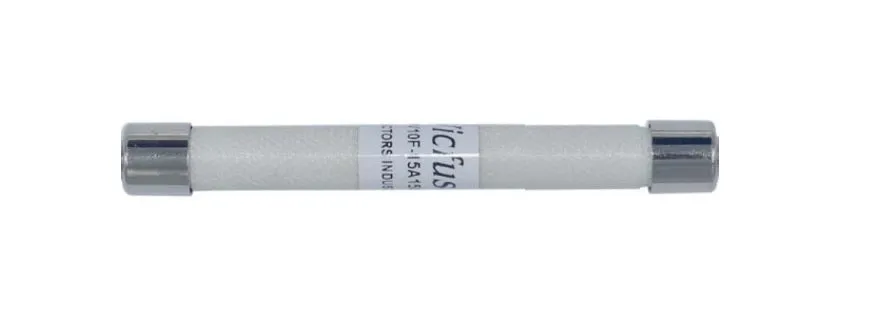

PV10-2A1500VDCgPV, GpV Solar Fuse 2Amp, 1500VDC @ 30kA, UL2579, IEC 60269, GB13539
Features
- Meets the new UL and IEC photovoltaic standards
- UL Recognized for 1000 VDC
- High breaking capacity of 10 kA @ 1000 VDC
- Low min. interrupting rating of 1.35 x In
- Meets the requirements of IEC 61730-2 for PV module safety
Applications
- All photovoltaic applications
- Inverters
- Battery charge controllers
- In-line protection
- String fuses
Specification
| Vicfuse Part Number | 8020.2053 |
| Fuse Type | I²t GpV Class Fast Blow |
| Nominal Voltage | 1000VDC, 275VAC |
| I²t Rating (Pre-Arcing) | 3150 A²/s |
| Nominal Current (DC) | 30 Amp |
| Tested Breaking Capacity | 10kA @1000VDC |
| Dimensions | 10.3 x 38mm |
| Fuse Holder |
|
| Mounting Style | Requires fuse holder |
| Operating Temperature Range | -40°C / 125°C |
| Watt Loss | 1.8W |
| DC Breaking Capacity | 10kA |
| Unit Weight | 8g |
| Factory Pack Qty | 10 |
Datasheet
Compatible Fuse Holder
