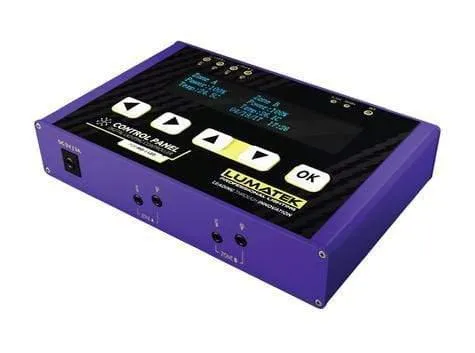

LUMATEK CONTROL CONTROL PANEL PLUS 2.0 (HID LED)

Using innovative technology, this controller smartly monitors your grow room temperatures, light timing & intensity automation, safety-controlled dimming and switching On/Off. Simply connect it to your Lumatek Controllable Fixtures, Drivers or Ballasts and easily regulate your grow room environment.

Power: Adaptor 100 - 240V AC 50/60Hz - DC 5V/2A

Match HID Ballast: 315W, 600W, 630W, 1000W

Match LED Driver: 90W, 465W, 600W, 1000W

Power Dimming Range: 10% - 115%

Power Regulation Accuracy: 1%

Temperature-controlled Safety Dimming range: 0ºC-40ºC

Temperature-controlled Safety Switching range: 10ºC-50ºC

Sunrise and Sunset Duration: 0-30 min

Dimensions: 125mm x 80mm x 25mm

• Control panel for up to 400 HID ballasts or 100 LED drivers
• Two channels (Zone A & Zone B)
• Max number of ballasts/drivers per Zone: 200 (RS485) HID or 50 (0-10V) LED
• Total number of ballast/drivers per controller: 400 (RS485) HID or 100 (0-10V) LED
• 24 Hr Light timing & switching
• Temperature sensor monitoring and control
• Dimming control (1% increments)
• Safety and temperature control automation
• Simulate sunrise and sunset to lessen plant stress
• Light intensity automation
