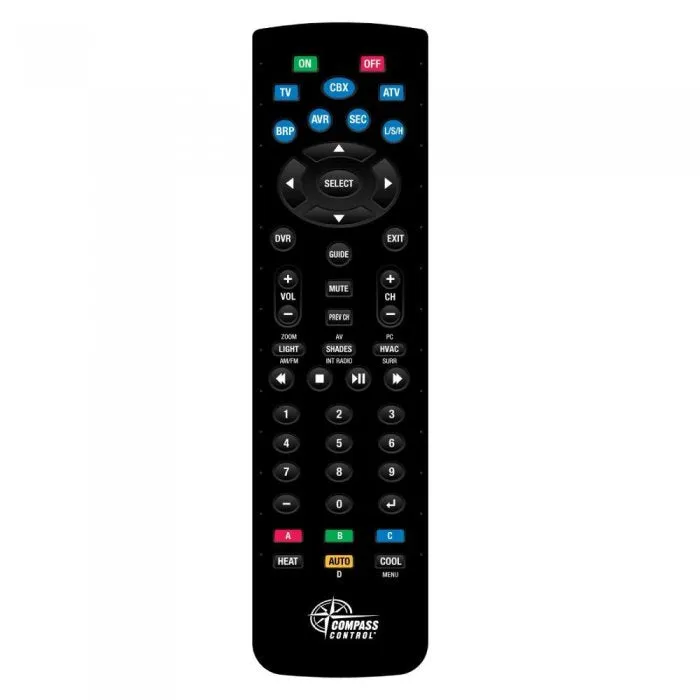

Key Digital KD-ZRC300 Wireless 2.4GHZ& IR Universal Remote Control

Specifications

• 48 Programmable Hard Buttons: For IR and/or RF ZigBee commands programmable via USB on PC or Mac with Compass Navigator™ PC Software
• Programming Support: Unlimited macro and variable actions
• ZigBee Signal Transmission: Up to 100' through walls, doors and floors
• Device Control: Up to 10 devices with line-of-sight IR control or RF Wireless 2.4 GHz ZigBee control
• Backlight: Motion detected automatic backlighting. The backlight will turn on when movement is detected and will stay on for five seconds after movement has stopped
• USB: Recharging and Programming
• Multiple System Modes:
• Idle Mode:Power Saving mode while remote is not in use
• Active Mode: Device switches to Active Mode after a button is pressed. Stays in Active Mode for 5 seconds
• Low Battery Mode: Activated when the battery has dropped below 2.4V
• Configuration Mode: To setup and configure the remote
• Indication Keys (On/Off):
• Low Battery indicator:Power OFF LED blinks every one second while in active mode
• Battery Charging indicator:Power ON LED blinks every one second while in active mode
• Full Charge indicator:Both Power ON and OFF LEDs blink every one second while in active mode
• Configuration Mode indicator:Both Power ON and OFF LEDs are steadily illuminated
• 7 Device Keys:The selected Device Key LED will remain illuminated to indicate which device is selected
