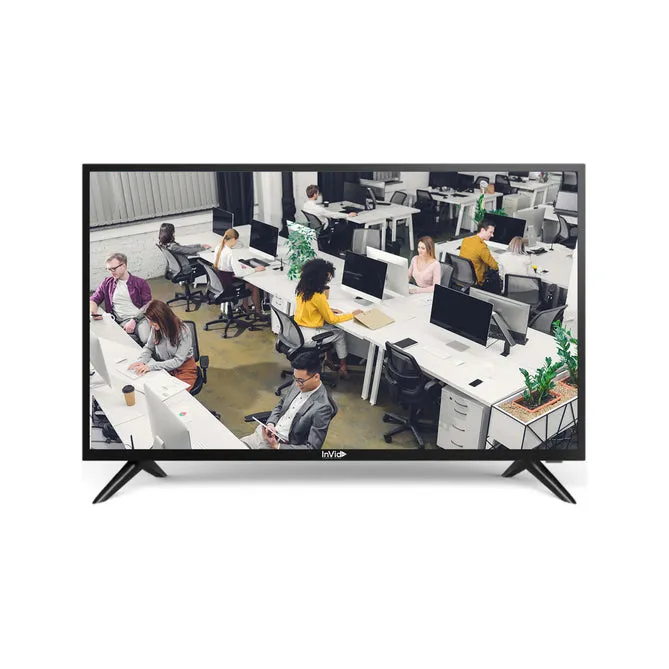

43” 1920 x 1080 Monitor, HDMI 2.0, VGA Input, Looping BNC Inputs & Outputs
Features
- Suitable for All Video Surveillance and Security applications
- Designed for 24/7 Operation
- 1920 x1080 Resolution
- LCD Panel
- Inputs: HDMI 2.0, VGA, BNC (2)
- Outputs: BNC
- Built-in speaker
- VESA Mount 200 x 100
- Landscape or Portrait Mode
Model Name |
IMHD-43HVBN |
Display Characteristics |
|
|
Screen Size |
43'’ |
|
Active Display Area (W x H) |
941.184 × 529.146 mm |
|
Display Mode |
16:1 |
|
LED Type |
TFT-LED |
|
Resolution |
1920 × 1080 |
|
Display Color |
1.073G |
|
Pixel Pitch ( H x V) |
0.294 × 0.294 |
|
Brightness(nits) |
350cd/M2 |
|
Contrast Ratio |
1000:1 |
|
Viewing Angle (H/V) |
178 /178 |
|
Response Time |
5ms |
|
Backlight |
LED |
Input & Output |
|
|
HDMI 2.0 |
1 |
|
VGA |
1 |
|
BNC Input |
2 |
|
BNC Output |
1 |
|
Speaker |
2x3W(Stereo) |
Video |
|
|
Color System |
PAL/NTSC/SECAM |
|
OSD Control |
Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language |
|
3D comb filter |
Yes |
|
Video Noise Reduction |
Yes |
Power & Mount Way |
|
|
Power |
AC100V~240V,50/60Hz |
|
Working Temperature |
-22°F ~ 185°F (-30°C ~ 85°C) |
|
Power Consumpton |
40W |
|
Menu |
Chinese/English (other languages supported) |
|
Mounting |
Stand mount, VESA mount 200 x 100 |
|
MTBF |
50000Hours |
|
Dimension size |
37.9 x 25.4 x 3.6 in (962*644*92mm) |
Accessories |
|
|
Included Accessories |
Industrial PSU,Screw, Cable holder, Quick start guide |
