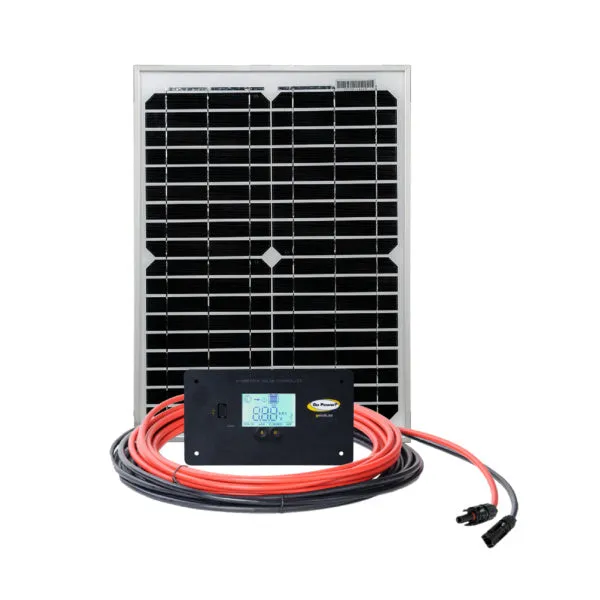

Eco 20 Solar Kit

The Go Power! Eco Solar Kit is the economical solution to keeping your batteries charged and healthy while away from grid power--replaces the need for a generator. This kit provides 20 watts and 1.14 amps of power charging capability. A great solution for a basic trickle charger.

Perfect Balance of Power Needs and Price

Rugged, reliable, high quality solar panels and components provide ample battery charging at an economic price.

Advanced Solar Technology

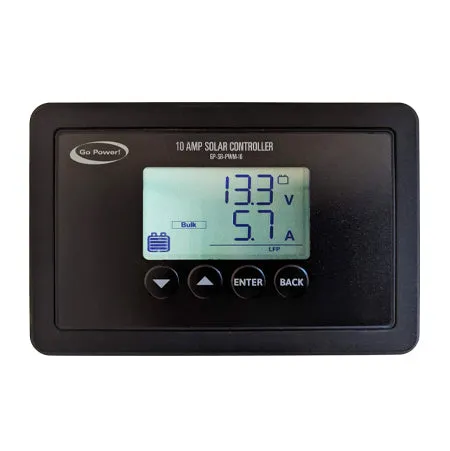

The GP-SB-PWM-10 is a 12 volt flush-mounted, single-bank, photo-voltaic (PV) charge controller rated for a continuous solar current input of 10 amps.

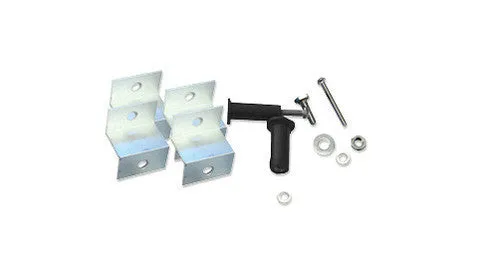

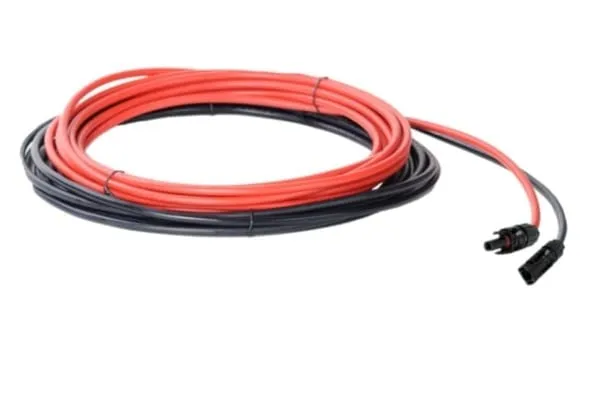

Ready-to-Install Kits Include Cables & Mounting Hardware

Everything you need to install and mount the panel is included, along with easy to follow, detailed installation instructions.

Specifications and Product Comparison

Specifications
Rated Power (Pm)	80 W	20 W	10 W
Maximum Power Voltage (Vmp)	18.4 V	17.5 V	17.5 V
Maximum Power Current (Imp)	4.35 A	1.14 A	0.57 A
Open Circuit Voltage (Voc)	22.8 V	21.6 V	21 V
Short Circuit Current (Isc)	4.60 A	1.21 A	0.62 A
Cell type	Monocrystalline	Monocrystalline	Monocrystalline
Max System Voltage	1000 VDC	600 VDC	600 VDC
Weight	13.2 lb (6 kg)	3.97 lb (1.8 kg)	1.7 lb (0.8 kg)
Dimensions	30.71 x 26.46 x 1.38 in (780 x 672 x 35 mm)	13.58 x 18.50 x 0.98 in (345 x 470 x 25 mm)	13.19 x 9.25 x 0.98 in (335 x 235 x 25 mm)
Frame type / material	Clear anodized aluminium frame
Warranty (Limited Power Output)*	25 year	10 year	10 year
