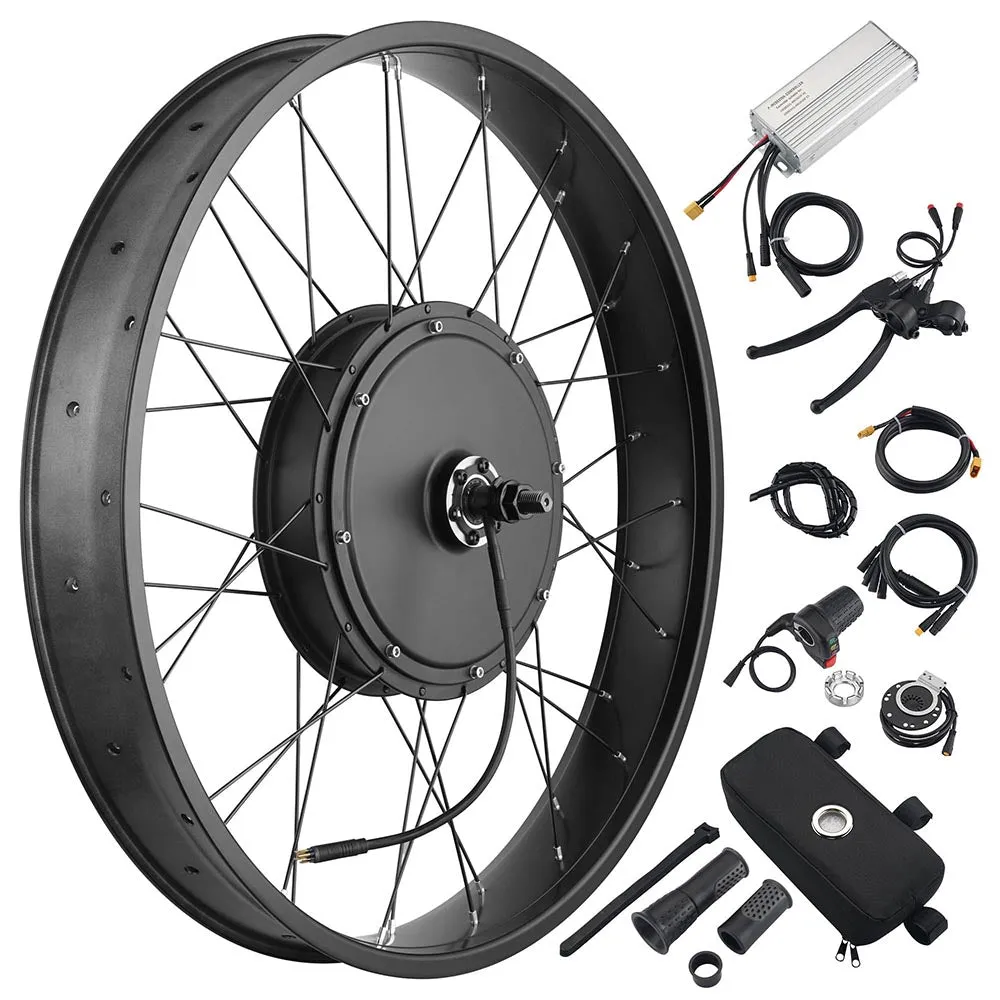

DIY 26 Inch Fat Tire Front Hub Motor Kit (Without Tire) equipped with Pedal Assist to help you pedal easier and faster. Added a charger and a battery bag to the kit, it is more convenient for you. 48v 1000 watts motor has an excellent efficiency that more than 80%, allows the speed up to 45 KM/H and a climbing angle of up to 12°.

FEATURES

• Pedal Assist System (PAS) uses sensors and intelligent control algorithms to provide additional electric assistance for uphill climbs, protecting the knees and making long-distance cycling more relaxed. It also enables faster riding to smoothly navigate through congested traffic areas.
• New design of waterproof connection, more convenient and stable for Installing or maintaining
• Fits for 5 5/16" front dropout spacing and 26" x 4" tire
• Approx. 28 mile/h (45 KPH) top speed
• CE certificated for safety assurance
• Less chance to break: Drive system has no moving chains or gears, no friction, more efficient.
• Equipped with a twist throttle for easily activating the motor by twisting the grip, along with 3 indicators for displaying battery status
• Battery Recommendation: Lead Acid Battery featured in nominal voltage 48v, nominal capacity 30Ah is compatible with the motor.
• The charger has an indicator light, which is red during charging and green when fully charged

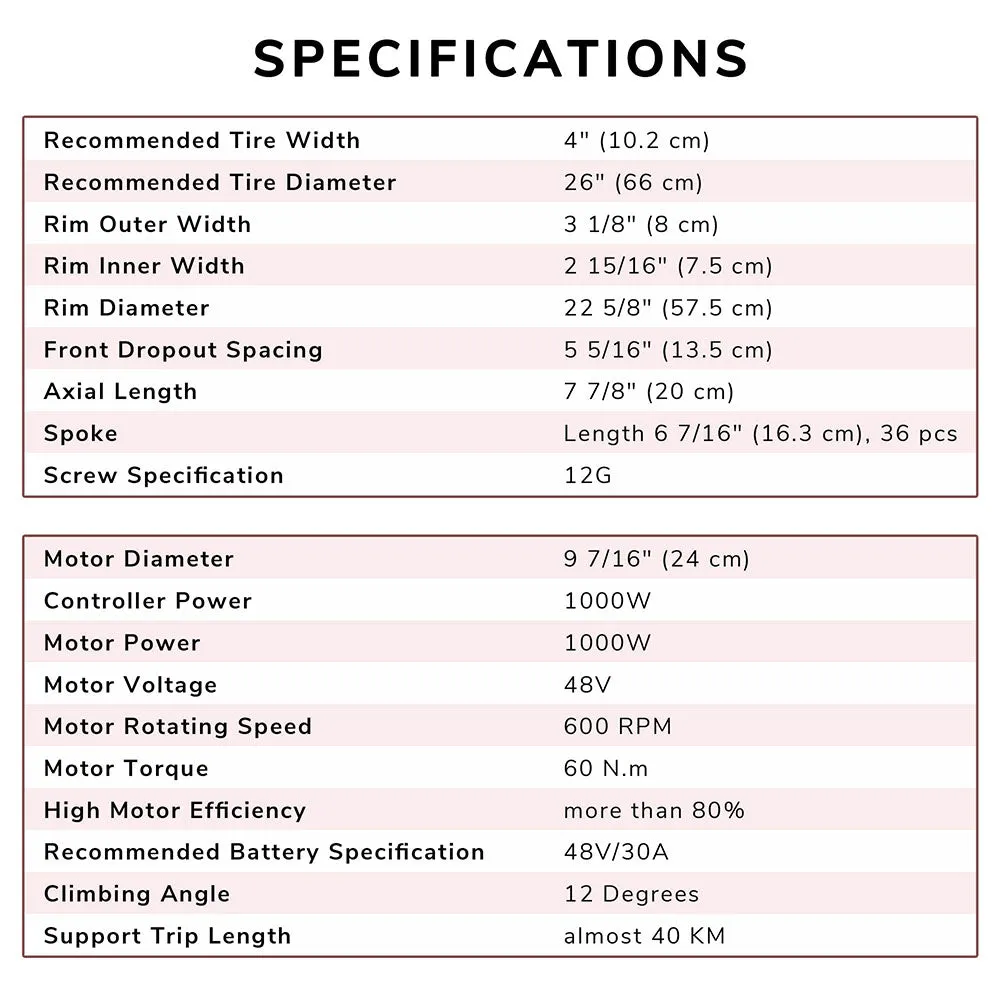

SPECIFICATION

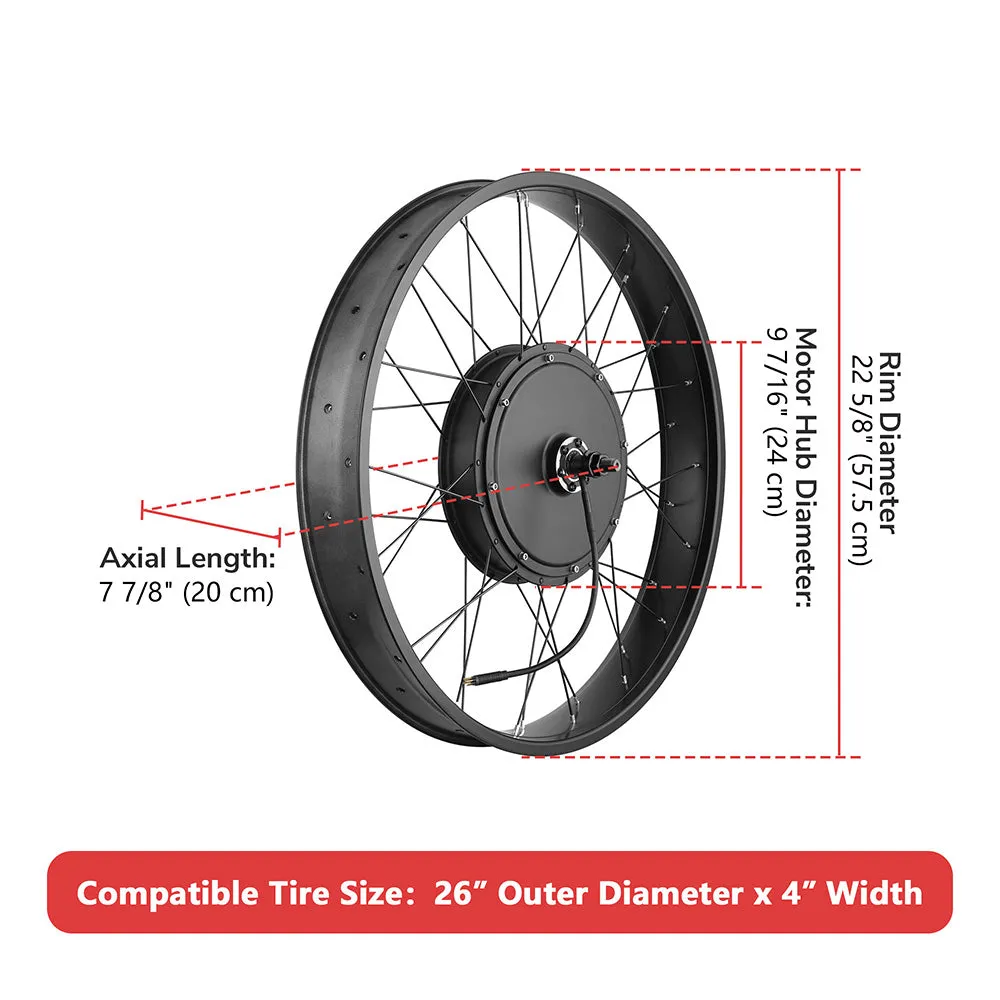

• Overall Dimension(Dia.xW): 22 5/8" x 7 7/8" (57.5 x 20 cm)
• Compatible Tire Size: 26" x 4"
• Rim Diameter: 22 5/8" (57.5 cm)
• Axial Length: 7 7/8" (20 cm)

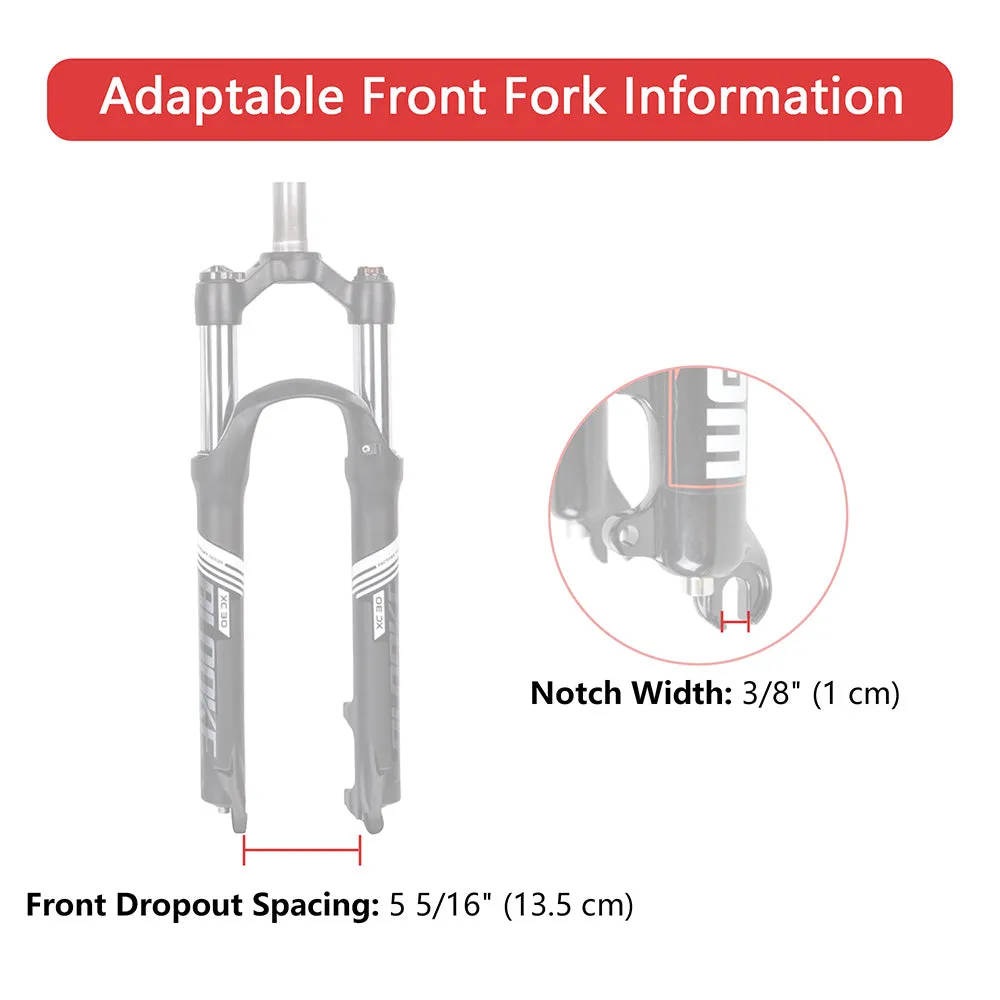

• Front Dropout Spacing: 5 5/16" (13.5 cm)

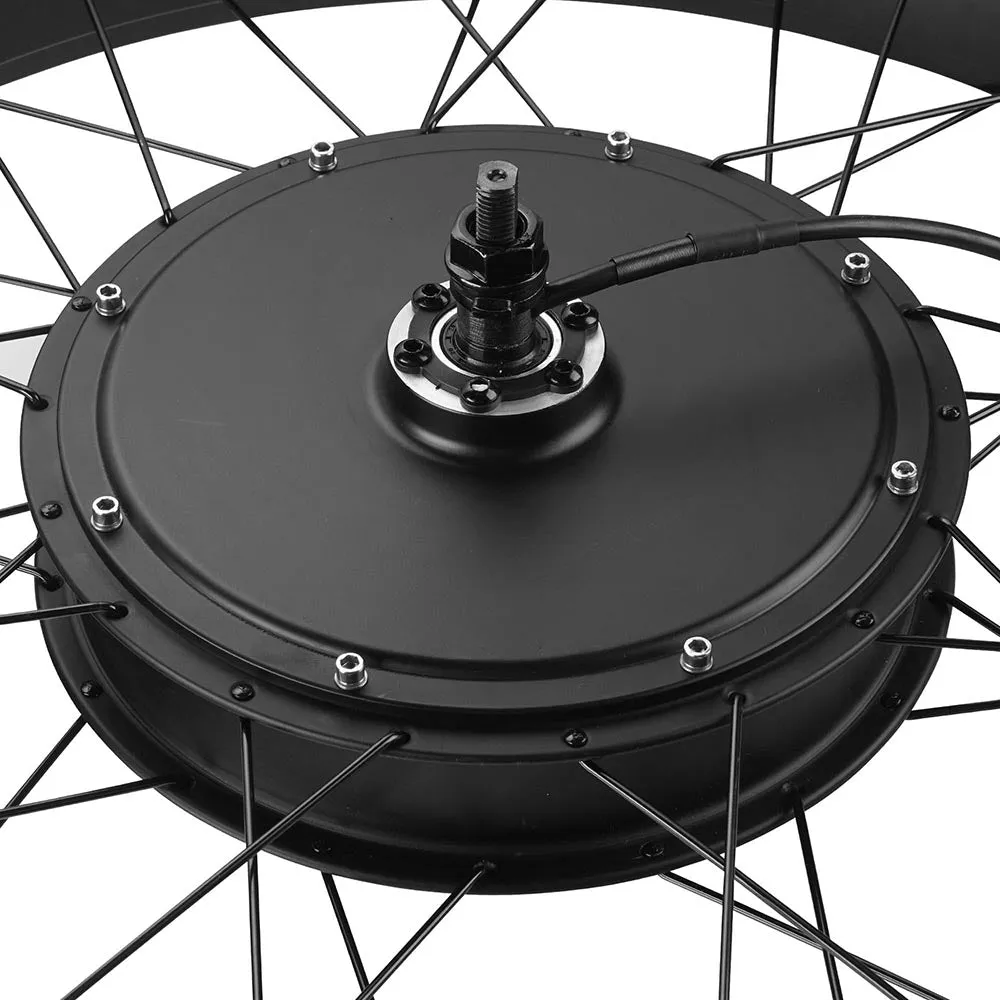

• Motor Diameter: 9 7/16" (24 cm)

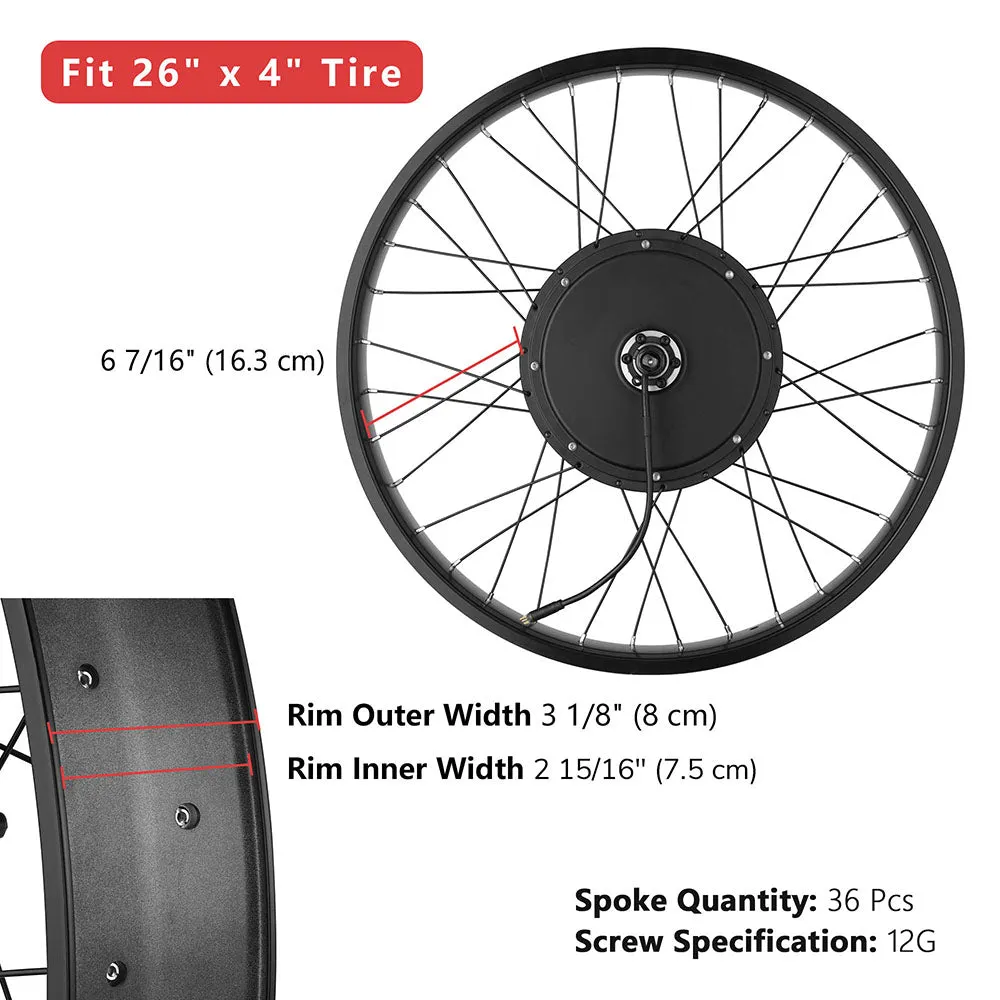

• The Number of Spokes: 36
• Spokes Length: 6 7/16" (16.3 cm)
• Spoke Specification: 12G
• Controller Power: 1000W
• Motor Voltage: 48V

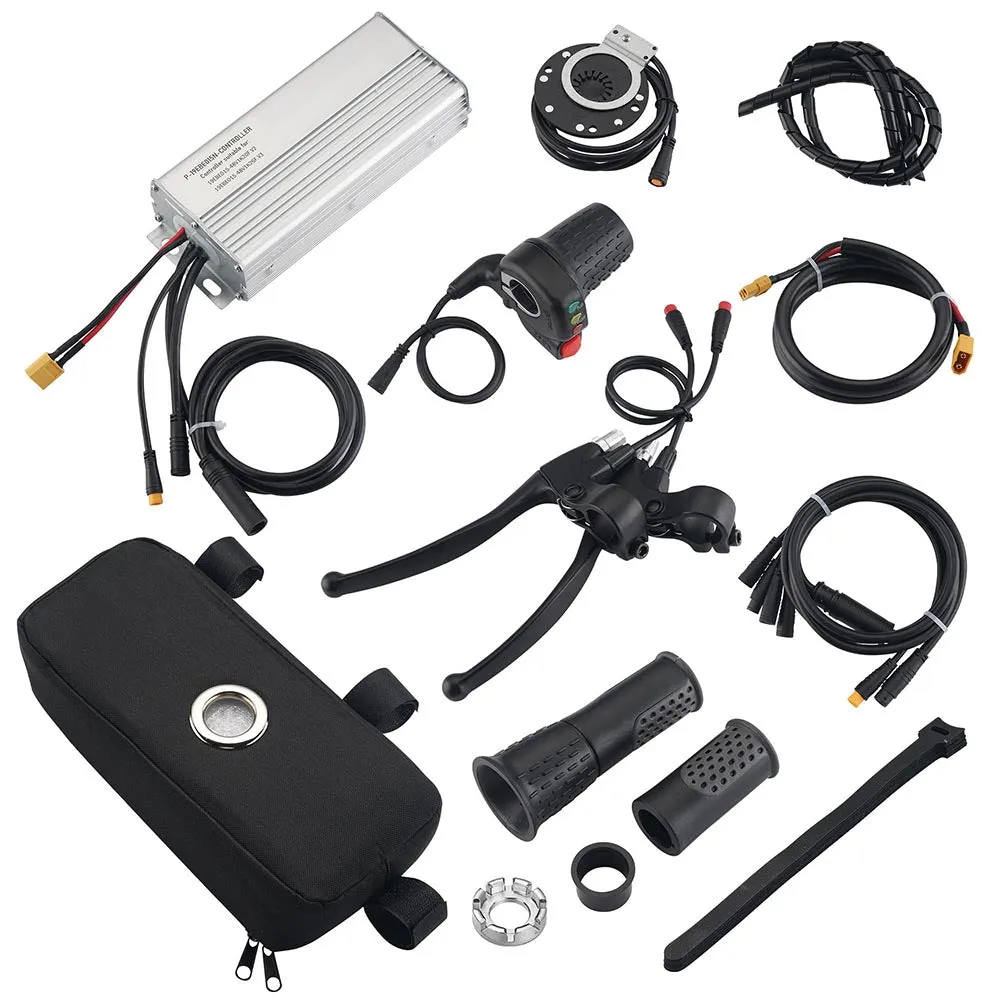

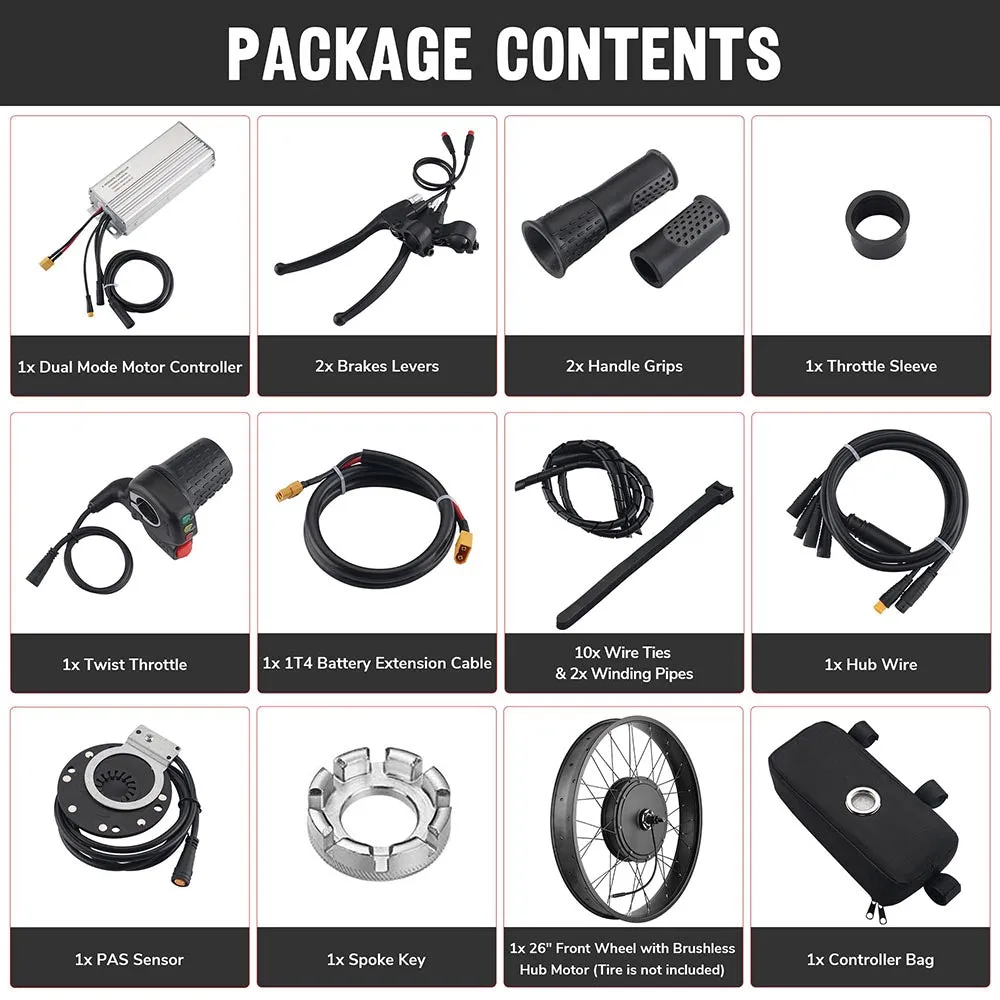

PACKAGE INCLUDES

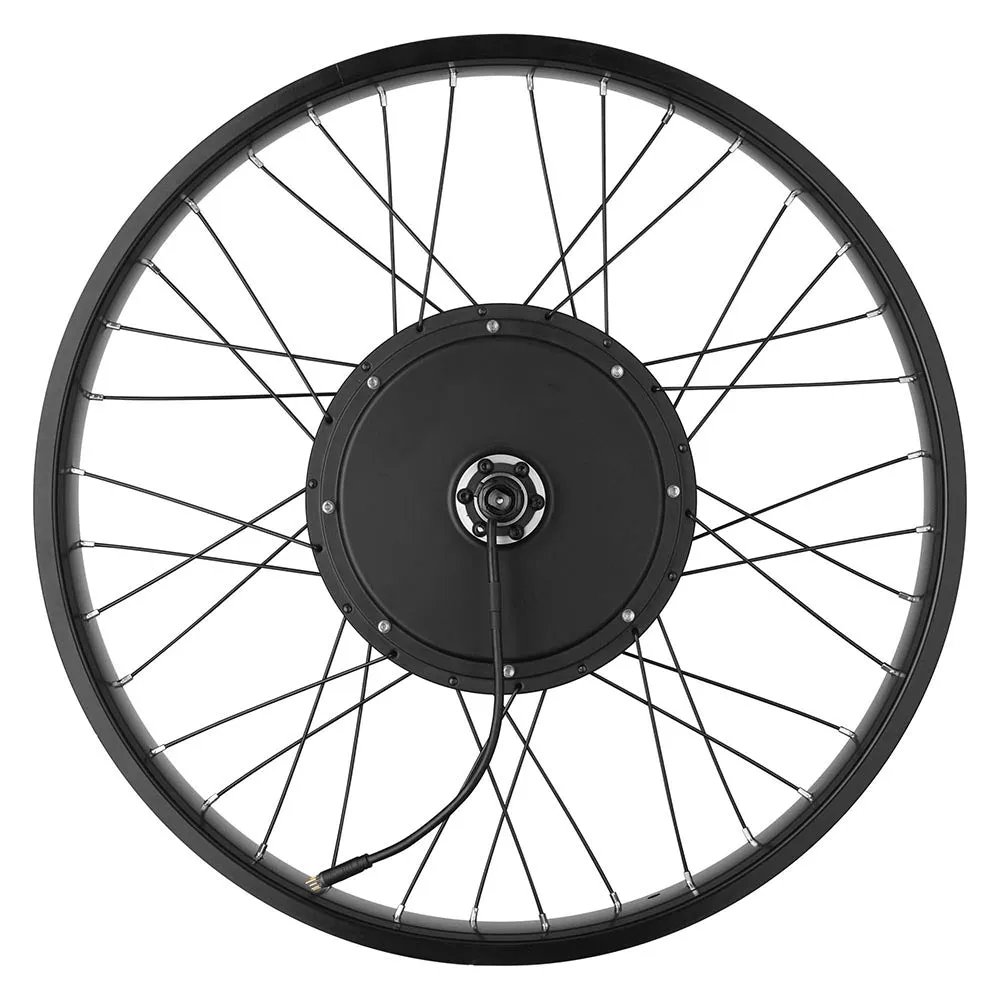

• 1x 26" Front Wheel with Brushless Hub Motor (Tire is not included)
• 1x Dual Mode Motor Controller
• 1x 1T4 Waterproof Battery Extension Cord
• 2x Brakes Levers, 2x Handle Grips
• 1x PAS Sensor, 1x Twist Throttle
• 1x Battery carrying bag, 1x Controller Bag
• 2x Winding Pipes, 1x Hub Wire
• 10x Wire Ties, 1x Spoke Key
• 1x Manual

NOTICE

• Battery not included.
• The charger only for lead-acid battery
• 1. Must wear a helmet for protection before riding this electric bicycle.
• 2. Please go to any Bicycle Shop with a standard business license for modification.
• 3.For safety reasons, it is not recommended to use in rainy days
• 4.It is only applicable to bicycle/snow bike, not tricycles, tractors, etc;
• 5.Suitable battery type and parameters: 48V, 30 Ah, travel about 40km;Recommended capacity is at least 8.8AH or above.
• 6. If you have any questions about a compatible Model, please contact our Customer Service before purchasing.
