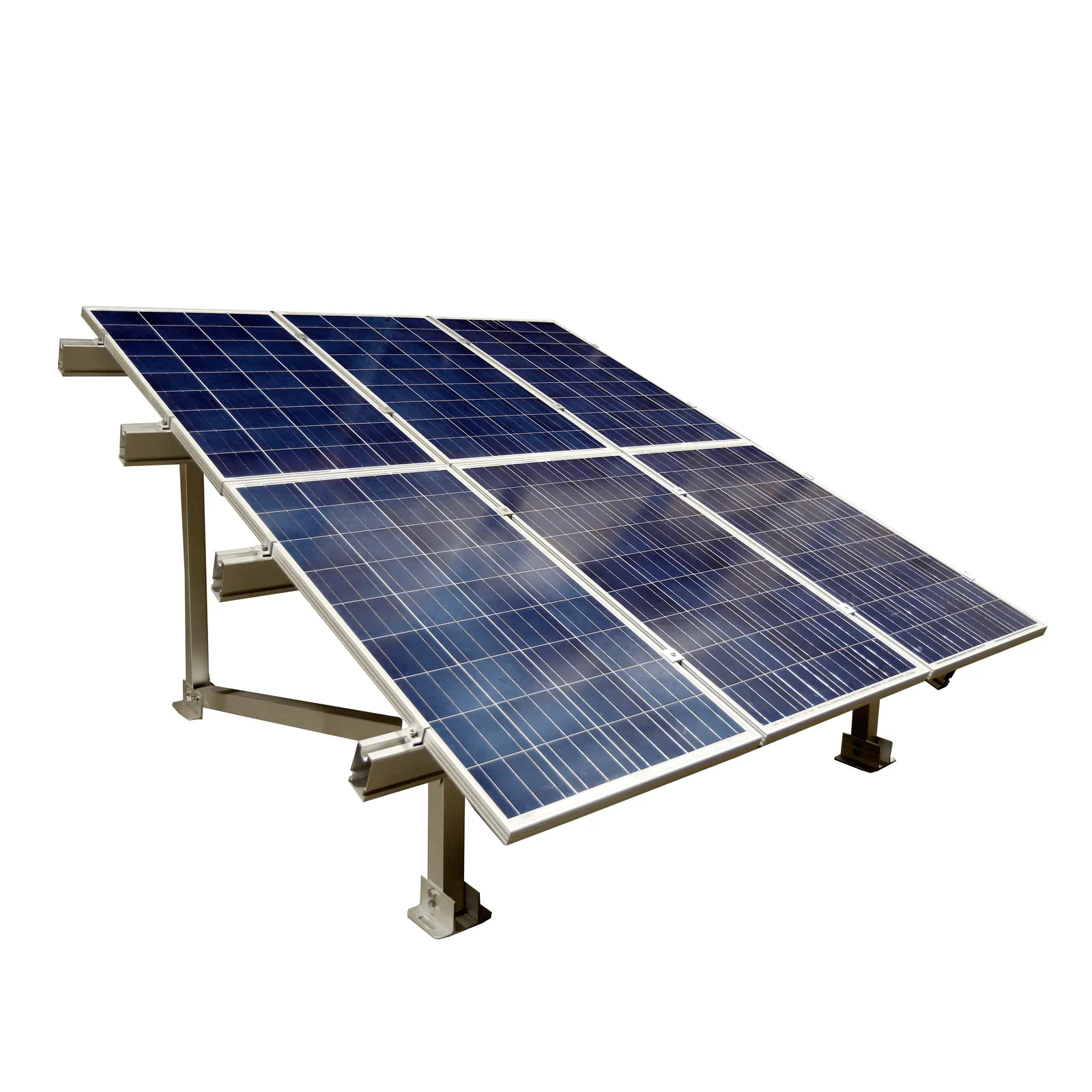

Solar Rack Ground Mount for Aluminum Frame 6 Solar Panels

See Features Below:

• Innovative assembly for quick set up
• Preassembled aluminum legs
• HD rails work with commercial and utility applications
• No need for expensive designs and/or drawings

Specifications

• Holds up to 6 solar panels, rugged design – 6005T5, aluminum and stainless steel SUS304

• Solid mounting feet

• Dimensions L x W x H: 75 1/2 X 106 7/8 X 48 5/8 inches

• Weight: 152 lbs

• Includes HD Rails, end clamps, mid clamps, HD rail clamps, pre-assembled legs, 25 year warranty

• Max pitch: 20 degrees

• Meets all industry standards

Product Manual

Delivery

Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our .
