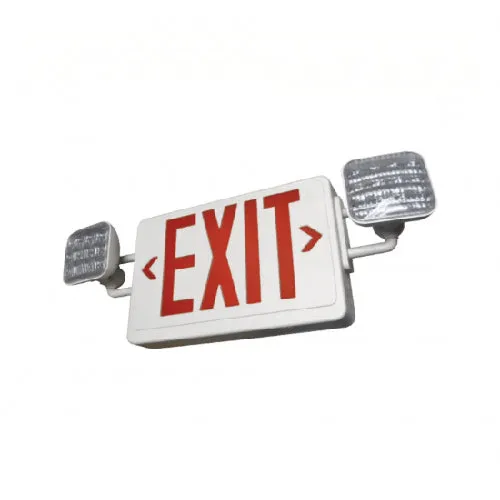

Advantage Environmental Lighting XEM9U All LED Exit & Emergency Combo

ILLUMINATION

• Long lasting, efficient ultra-bright white LED lamp heads.
• 1 watt (8 LEDs x 0.125 watt) per head
• High-performance chrome-plated metalized reflector and plastic lens for optimal light distribution.
• Adjustable LED lamp heads provides optimal center-tocenter spacing. Optional high-lumen heads are available for increased center-to-center spacing.
• Long-life, energy efficient Red or Green LED exit sign illumination.

ELECTRICAL

• Dual 120/277 voltage.
• Charge rate/power “ON” LED indicator light and push to test switch for mandated code compliance testing.
• 9.6V Long-life, maintenance-free, rechargeable NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED board and LED lamp heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

MOUNTING

• EZ-snap mounting canopy included for top or end mount.
• Universal K/O pattern on back plate for wall mount.

HOUSING

• Injection-molded, engineering-grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.
• EZ snap-out Chevron directional indicators.

OPTIONS

• HL: 12-LED heads provide increased center-to-center spacing (1.5W per head).
• SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes.
• NH: No lamp head attach to the unit enabling it to be used as remote capable exit sign.
• RC: Remote Capacity option available.

WARRANTY/LISTING

• Five year warranty on all electronics and housing. Battery pro rated for f ive years.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL Listed for damp locations (0°C – 40°C).
• Certified to CEC under Title 20 Regulations
