8020.2051, AEO 10.3x38 GpV Solar Fuse 15Amp, 1000VDC @ 20kA, 275VAC @ 10kA IEC 61730-2
8020.2051, AEO 10.3x38 GpV Solar Fuse 15Amp, 1000VDC @ 20kA, 275VAC @ 10kA IEC 61730-2
  • 8020.2051, AEO 10.3x38 GpV Solar Fuse 15Amp, 1000VDC @ 20kA, 275VAC @ 10kA IEC 61730-2
Product Details ＋

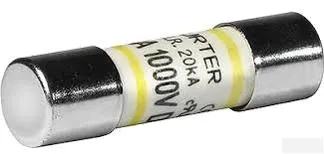

Schurter 8020.2051 AEO 10.3x38mm GpV Fast Blow Solar Fuse 15Amp, 1000VDC, 20kA, IEC 61730-2

Features

  • Ratings up to 50 Amp
  • Meets the new UL and IEC photovoltaic standards
  • ROHS Compliant
  • UL Recognized for 1000 VDC, and 275VAC
  • High breaking capacity of 20 kA @ 1000 VDC, 10kA @ 175VAC
  • Low min. interrupting rating of 1.35 x In
  • Meets the requirements of IEC 61730-2 for PV module safety

Applications

  • All photovoltaic applications
  • Inverters
  • Battery charge controllers
  • In-line protection
  • String fuses

Cross Reference

  • Littlefuse SPF
  • Busmann PV Fuse
  • Mersen HP10M
  • ASTM HV110
  • SIBA 5021528
  • ESKA 1038.800
  • Hollyfuse HC10aR

Specification
Schurter Part Number 8020.2051
Fuse Type I²t GpV Class Fast Blow
Nominal Voltage 1000VDC, 275VAC
I²t Rating (Pre-Arcing) 488 A²/s
Nominal Current (DC) 15 Amp
Tested Breaking Capacity 20kA @1000VDC 10kA @ 275VAC
Dimensions 10.3 x 38mm
Fuse Holder
Mounting Style Requires fuse holder
Operating Temperature Range -40°C / 125°C
Watt Loss 1W
DC Breaking Capacity 20kA
Unit Weight 8g
Approvals ROHS, IEC,
Factory Pack Qty 10

Datasheet
Compatible Fuse Holder
8020.2051, AEO 10.3x38 GpV Solar Fuse 15Amp, 1000VDC @ 20kA, 275VAC @ 10kA IEC 61730-2
  • DefaultTitle

$ 0.00

$ 13.90

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable
